COP8SAA716M8/NOPB - Texas Instruments

Description: IC MCU 8BIT 1KB OTP 16SOIC

Download COP8SAA716M8/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

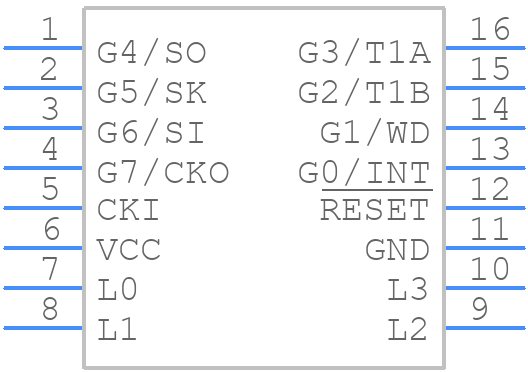

COP8SAA716M8/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
COP8SAA716M8/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - M16B
click to zoom
3D Models
COP8SAA716M8/NOPB - Texas Instruments - 3D model - Small Outline Packages - M16B
click to zoom

COP8SAA716M8/NOPB Details

  • Manufacturer Part Number:

    COP8SAA716M8/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Has ADC:

    NO

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    COP800

  • Clock Frequency-Max:

    10 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    12

  • Number of Terminals:

    16

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    64

  • ROM (words):

    1024

  • ROM Programmability:

    OTPROM

  • Seated Height-Max:

    2.65 mm

  • Speed:

    10 MHz

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

COP8SAA716M8/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power consumption, use a heat sink, and ensure good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer between the device and heat sink.
  • Texas Instruments recommends using 0.1 μF to 1 μF decoupling capacitors placed as close as possible to the device's power pins. The capacitors should be rated for the device's operating voltage and have a low equivalent series resistance (ESR).
  • To troubleshoot issues with the POR circuitry, check the power supply voltage, ensure that the VCC pin is properly decoupled, and verify that the POR pin is not being driven by an external signal. Also, check for any noise or glitches on the power supply lines that may be causing the POR circuitry to malfunction.
  • The internal oscillator has a limited frequency range and accuracy. It is recommended to use an external crystal oscillator for applications that require high frequency accuracy or stability. Additionally, the internal oscillator may be affected by temperature and voltage variations, which can impact its performance.
