Texas Instruments recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to minimize thermal resistance. Additionally, placing thermal vias under the device can help to dissipate heat more efficiently.
To ensure reliable operation in high-temperature environments, it is recommended to follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management to keep the device temperature within the recommended range.
The recommended power-on sequencing is to apply the power supplies in the following order: VCC, then VCCIO. The voltage ramp-up time should be slower than 10 ms to prevent damage to the device. It is also recommended to use a soft-start circuit to limit the inrush current during power-on.
To troubleshoot issues with the internal oscillator, check the oscillator circuitry for proper connection and component values. Verify that the oscillator pins are not loaded with excessive capacitance or resistance. Also, check the power supply voltage and ensure that it is within the recommended range. If the issue persists, consider using an external oscillator or clock source.
To prevent damage from electrostatic discharge (ESD), handle the device by the body or use an ESD wrist strap or mat. Ensure that the workspace and equipment are ESD-protected. Use ESD-protected packaging and storage materials when storing or shipping the device. Follow the recommended handling and storage procedures outlined in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
COP8SGE728N8/NOPB Overview

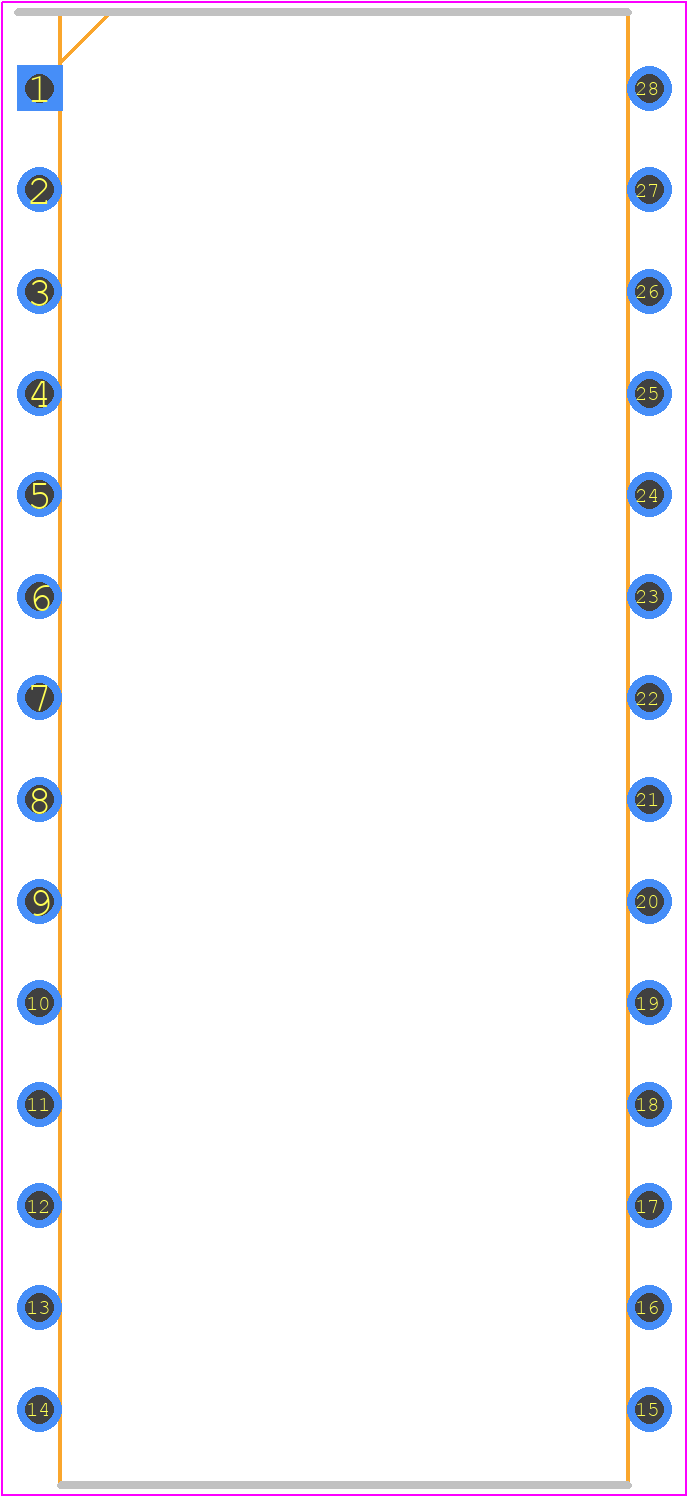

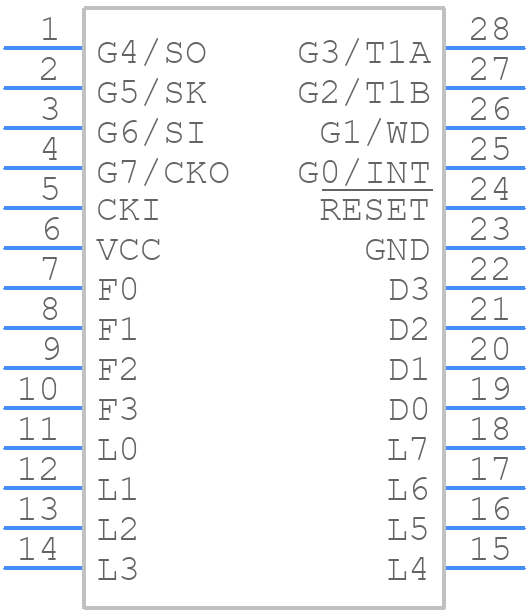

Use the download button to access the COP8SGE728N8/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like COP8S,
or try a keyword search, such as Microcontrollers
