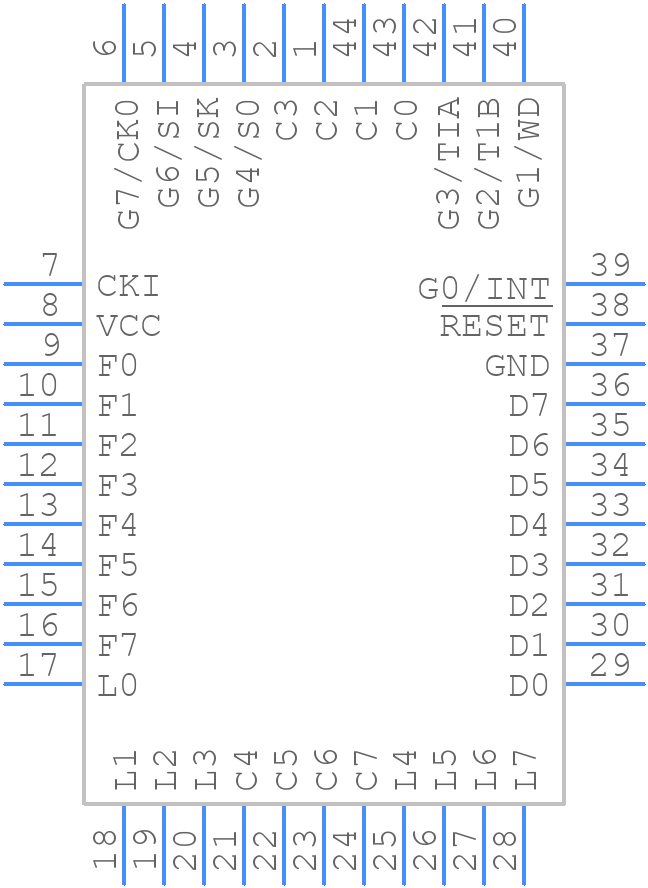

COP8SGE744V8 - Texas Instruments

COP8SGE744V8 Details

• Manufacturer Part Number:

  COP8SGE744V8

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LCC

• Package Description:

  LCC-44

• Pin Count:

  44

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  YES

• CPU Family:

  COP800

• Clock Frequency-Max:

  15 MHz

• DAC Channels:

  YES

• DMA Channels:

  NO

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e0

• Length:

  16.51 mm

• Moisture Sensitivity Level:

  2A

• Number of I/O Lines:

  40

• Number of Terminals:

  44

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  220

• Qualification Status:

  Not Qualified

• RAM (bytes):

  256

• ROM (words):

  8192

• ROM Programmability:

  OTPROM

• Screening Level:

  AEC-Q100; TS 16949

• Seated Height-Max:

  4.57 mm

• Speed:

  15 MHz

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  16.51 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
