CP1aH-12V - Panasonic

Description: High Carrying Current Type, Miniature Low Profile Automotive Relay

Download CP1aH-12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CP1aH-12V - Panasonic - PCB symbol
click to zoom
PCB Footprints

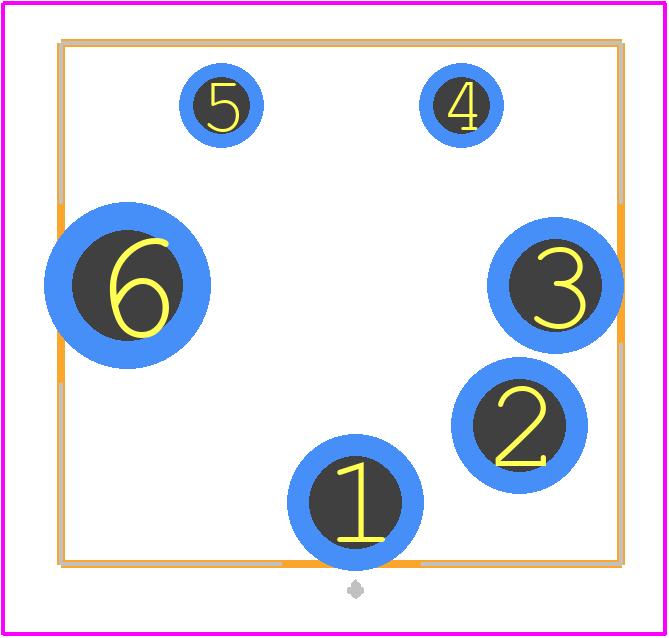

CP1aH-12V - Panasonic PCB footprint - Other - Other - CP1aH-12V-1
click to zoom
3D Models
CP1aH-12V - Panasonic - 3D model - Other - CP1aH-12V-1
click to zoom

CP1aH-12V Details

  • Manufacturer Part Number:

    CP1AH-12V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.05

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.49

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    13 mm

  • Body Height:

    9.5 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.038 A

  • Coil Operate Voltage(DC):

    7.5 V

  • Coil Power:

    450 mW

  • Coil Release Voltage(DC):

    1 V

  • Coil Resistance:

    320 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    20 A

  • Contact (DC) Max Rating R Load:

    20A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    14mm x 13mm x 9.5mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

CP1aH-12V Frequently Asked Questions (FAQs)

  • The recommended storage condition for CP1AH-12V is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid storing in direct sunlight or near heat sources.
  • While CP1AH-12V is designed to be robust, it's recommended to follow the vibration resistance guidelines outlined in the datasheet. For extreme vibration environments, consider using additional mounting or vibration-dampening measures to ensure reliability.
  • To prevent electrostatic discharge (ESD) damage, handle CP1AH-12V with ESD-protective equipment, such as wrist straps, mats, or bags. Ensure that your workspace is ESD-safe and follow proper handling procedures.
  • The recommended soldering temperature for CP1AH-12V is between 250°C to 260°C, with a maximum soldering time of 3 seconds. Avoid exceeding these limits to prevent damage to the component.
  • While CP1AH-12V has some level of moisture resistance, it's not designed for continuous exposure to high humidity or wet environments. If your application requires operation in such conditions, consider using additional protective measures, such as conformal coating or sealing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CP1aH-12V Overview

Use the download button to access the CP1aH-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CP1aH, or try a keyword search, such as Power/Signal Relays
