CP2-HB110-A2-FJ - 3M

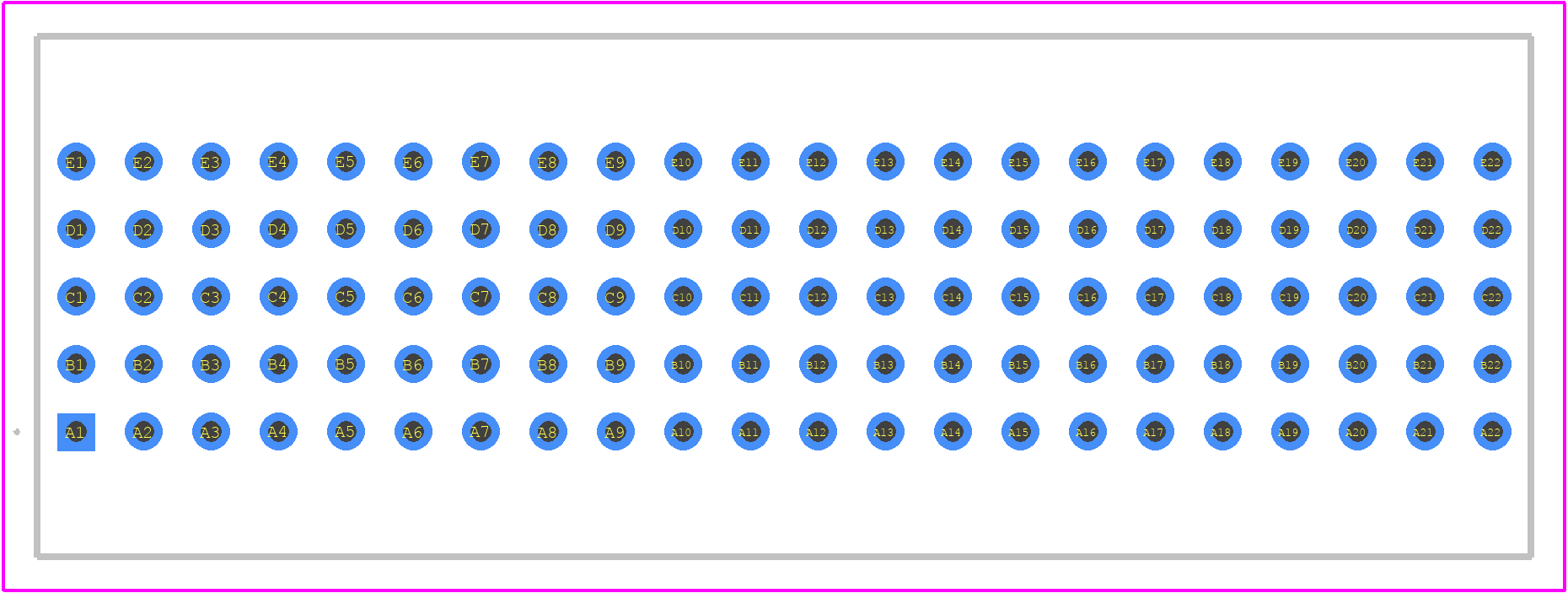

CP2-HB110-A2-FJ Details

• Manufacturer Part Number:

  CP2-HB110-A2-FJ

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  3M Interconnect

• YTEOL:

  8

• Body Breadth:

  0.606 inch

• Body Depth:

  0.53 inch

• Body Length:

  1.744 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  TIN OVER NICKEL

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Filter Feature:

  NO

• Insertion Force-Max:

  .7506 N

• Insulation Resistance:

  10000000000 Ω

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.079 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  7

• Number of Rows Loaded:

  5

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• PCB Contact Row Spacing:

  2.0066 mm

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.091 inch

• Terminal Pitch:

  2.0066 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  110

• Withdrawl Force-Min:

  1.5012 N
