CPH5518-TL-E - onsemi

Description: Obsolete - Bipolar Transistor, (-)50V, (-)3A, Low VCE(sat) Complementary Dual CPH5

Download CPH5518-TL-E Model
Schematic

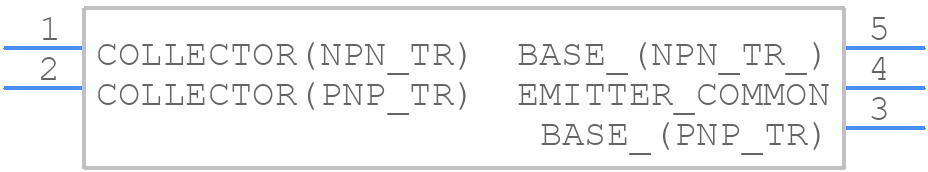

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CPH5518-TL-E - onsemi PCB footprint - Other - Other - CPH5518-TL-E-2
click to zoom
3D Models
CPH5518-TL-E - onsemi  - 3D model - Other - CPH5518-TL-E-2
click to zoom

CPH5518-TL-E Details

  • Manufacturer Part Number:

    CPH5518-TL-E

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CPH5

  • Pin Count:

    5

  • Manufacturer Package Code:

    318BC

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Collector Current-Max (IC):

    1 A

  • DC Current Gain-Min (hFE):

    200

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    1

  • Operating Temperature-Max:

    150 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    1.2 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN BISMUTH

  • Time@Peak Reflow Temperature-Max (s):

    30
