Description:Adoption of MBIT process; Large current capacity; Low collector-to-emitter saturation voltage; High-speed switching; Ultrasmall package facilitates miniaturization in end products (mounting height : 0.9mm); High allowable power dissipation
A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a heat sink or a thermal management system.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and ensure good airflow around the device. Additionally, consider using thermal interface materials and conformal coatings to protect the device from moisture and humidity.
To prevent electrostatic discharge (ESD) damage, it's recommended to handle the device with ESD-safe materials, use ESD-protected workstations, and follow proper handling and storage procedures. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the circuit design.
Yes, the CPH6223-TL-E is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, ensure proper thermal management, and comply with relevant industry standards and regulations, such as AEC-Q100.
For optimal soldering and assembly, follow the recommended reflow soldering profile, use a solder paste with a high melting point, and ensure proper component alignment and placement. Additionally, consider using a nitrogen atmosphere during reflow soldering to minimize oxidation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CPH6223-TL-E Overview

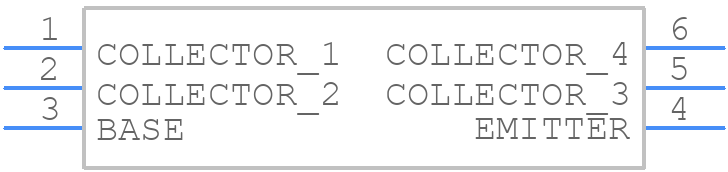

Use the download button to access the CPH6223-TL-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CPH62,
or try a keyword search, such as Power Bipolar Transistors
