CPH6445-TL-E - onsemi

Description: ON Semiconductor CPH6445-TL-E N-channel MOSFET Transistor, 3.5 A, 60 V, 6-Pin CPH

Download CPH6445-TL-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

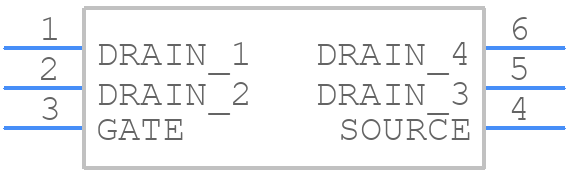

CPH6445-TL-E - onsemi - PCB symbol
click to zoom
PCB Footprints
CPH6445-TL-E - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - CPH6 CASE 318BD
click to zoom
3D Models
CPH6445-TL-E - onsemi - 3D model - SOT23 (6-Pin) - CPH6 CASE 318BD
click to zoom

CPH6445-TL-E Details

  • Manufacturer Part Number:

    CPH6445-TL-E

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SC-74, SOT-26, SOT-457, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    318BD

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    3.5 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    1.6 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN BISMUTH

  • Time@Peak Reflow Temperature-Max (s):

    30
