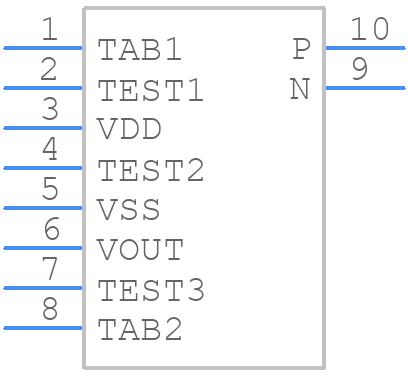

Symbol

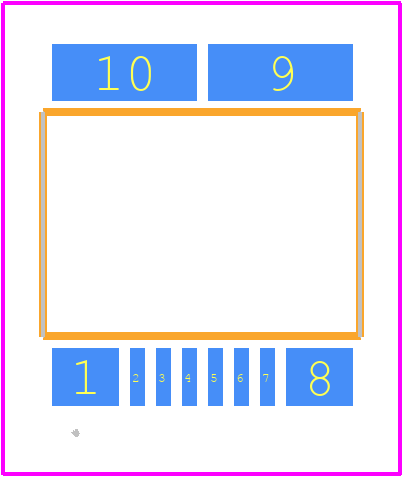

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CQ330A
- Part Number CQ330A
- Manufacturer Asahi Kasei Microdevices
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - CQ330A-4
- Released Date Sep 12, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CQ330A Details
-
Manufacturer Part Number:
CQ330A
-
Manufacturer:
Asahi Kasei Microsystems Corporation
Trust Checks
Expert Contribution
System Verified
Community Approved
CQ330A Overview
Use the download button to access the CQ330A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CQ330,
or try a keyword search, such as Other Signal Circuits
