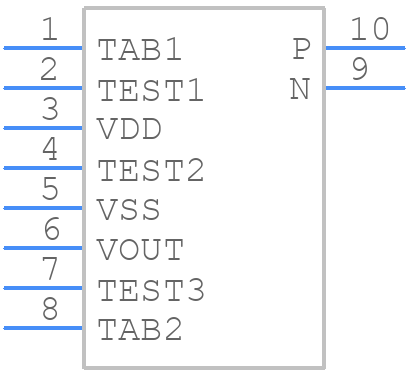

Symbol

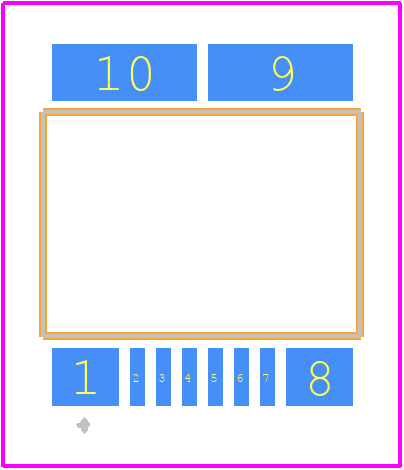

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CQ330E
- Part Number CQ330E
- Manufacturer Asahi Kasei Microdevices
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - CQ330E-2
- Released Date May 29, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CQ330E Details
-
Manufacturer Part Number:
CQ330E
-
Manufacturer:
Asahi Kasei Microsystems Corporation
Trust Checks
Expert Contribution
System Verified
Community Approved
CQ330E Overview
Use the download button to access the CQ330E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CQ330,
or try a keyword search, such as Other Signal Circuits
