OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.04 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
100 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.12 s
Width:
36.8 mm
CQB100W-24S05 Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the input and output capacitors close to the DC-DC converter, using a solid ground plane, and minimizing the loop area of the input and output currents. Thermal management involves providing adequate airflow, using a heat sink if necessary, and ensuring the ambient temperature is within the specified range.
To ensure EMC, follow proper PCB layout and grounding practices, use shielding if necessary, and ensure the CQB100W-24S05 is operated within its specified frequency range. Additionally, consider using EMI filters or common-mode chokes to reduce electromagnetic interference.
The derating curve is typically provided in the manufacturer's application notes or can be obtained by contacting Cincon Electronics Corporation directly. It provides the recommended output power reduction as a function of ambient temperature to ensure reliable operation.
Implement OVP and UVP using external components such as zener diodes, resistors, and comparators. The specific implementation will depend on the system requirements and the converter's characteristics. Consult the datasheet and application notes for guidance.
The recommended input capacitor type is typically a low-ESR ceramic or film capacitor with a value of 10-22uF. The specific value and type may vary depending on the input voltage, ripple current, and system requirements. Consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CQB100W-24S05 Overview

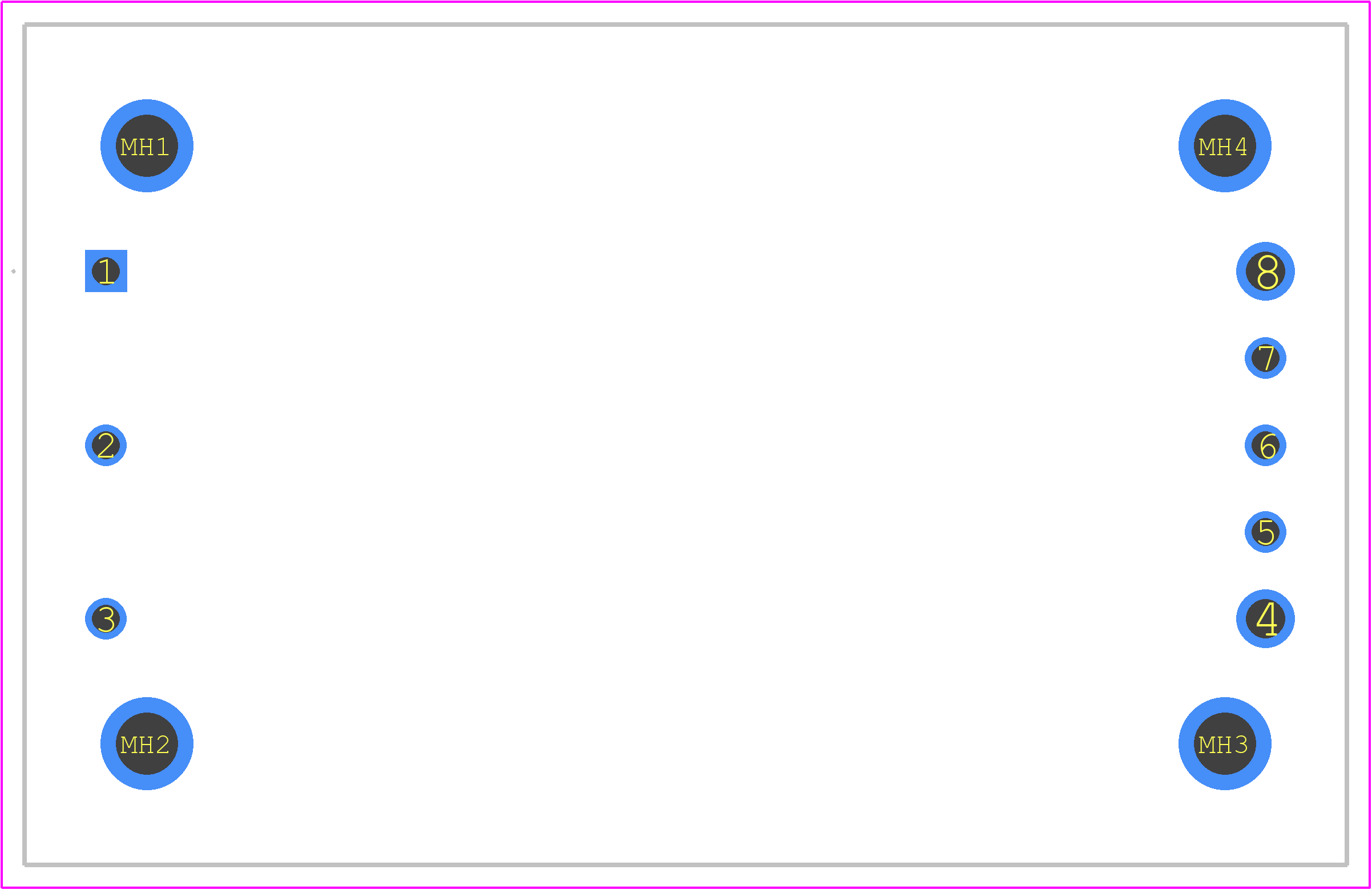

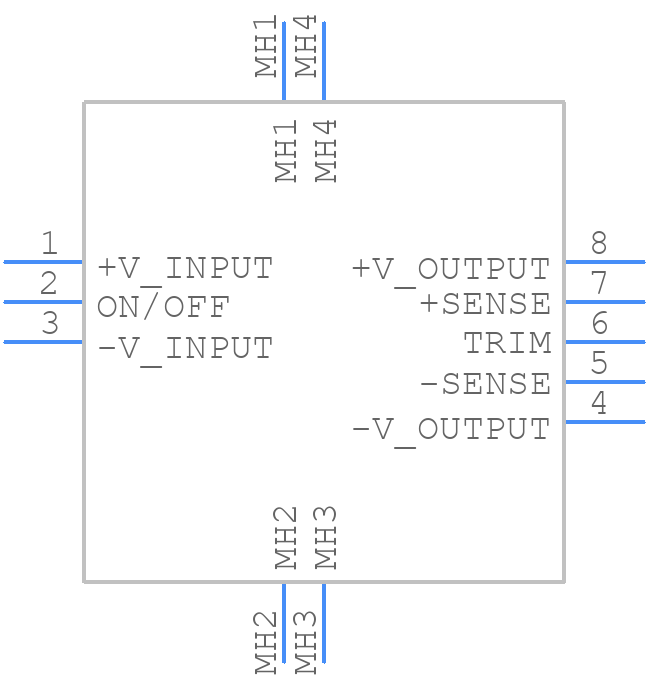

Use the download button to access the CQB100W-24S05 schematic symbol, PCB footprint, and 3D model.
