CQB100W14-72S24 - Cincon

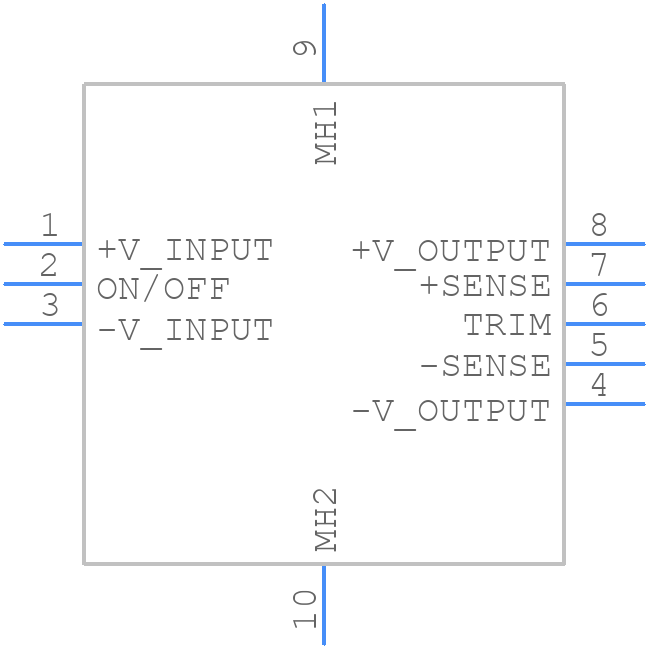

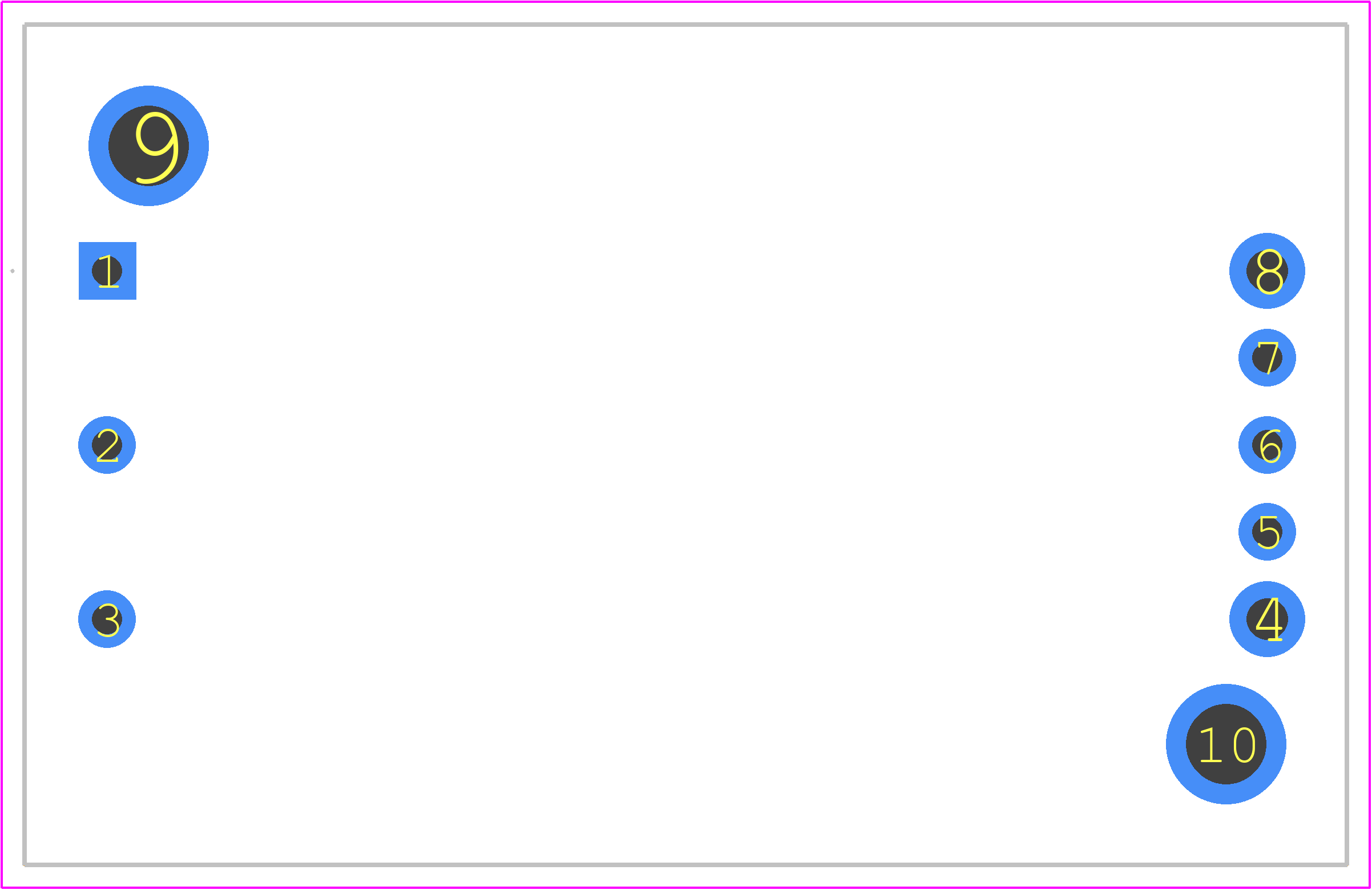

CQB100W14-72S24 Details

• Manufacturer Part Number:

  CQB100W14-72S24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  1/4 BRICK PACKAGE-10/8

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  7

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CB, CE, C-UL-US, EN, IEC, UKCA, UL

• Efficiency (Main Output):

  89%

• Input Voltage-Max:

  160 V

• Input Voltage-Min:

  12 V

• Input Voltage-Nom:

  72 V

• JESD-30 Code:

  R-PDMA-P8

• Length:

  57.9 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  4.2 A

• Output Voltage-Max:

  27.6 V

• Output Voltage-Min:

  19.2 V

• Output Voltage-Nom:

  24 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,8/10LEAD,2

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL

• Ripple Voltage (Main Out):

  0.12 Vrms

• Screening Level:

  IEC/UL 62368-1

• Seated Height-Max:

  13.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  3.81 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  100 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.1 s

• Width:

  36.8 mm
