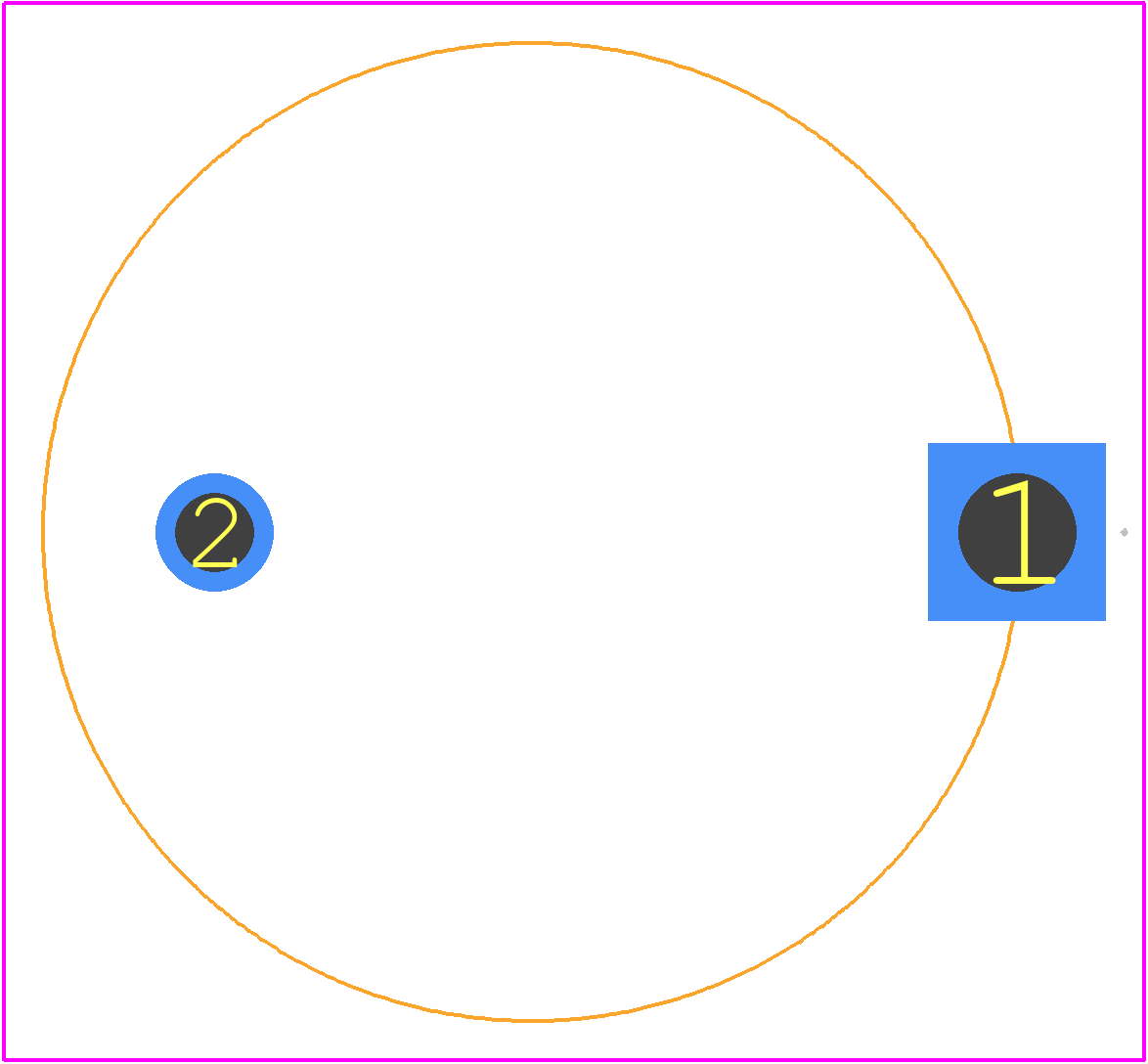

CR-2477/HFN footprint, schematic symbol and 3D model by Panasonic

Symbol

PCB Footprints

3D Models

CR-2477/HFN Details

Store in a cool, dry place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 70%.
Handle the component by the body, avoiding touching the leads or electrical contacts to prevent damage from static electricity or contamination.
Solder at a temperature of 250°C to 260°C for 2 to 3 seconds, using a soldering iron with a temperature-controlled tip.
Yes, CR-2477/HFN is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
Use a soft brush and a mild solvent, such as isopropyl alcohol or a commercial cleaning solution, to remove flux residue and other contaminants.

Community Provided

System Verified

Community Approved

Use the download button to access the CR-2477/HFN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CR-24, or try a keyword search, such as Batteries
