The recommended land pattern for CR2512-FX-15R0ELF is a rectangular pad with a size of 2.5mm x 1.2mm, with a 0.5mm radius corner and a 0.2mm clearance around the pad.
Yes, CR2512-FX-15R0ELF is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated and that the operating conditions do not exceed the maximum ratings.
Yes, CR2512-FX-15R0ELF is compatible with lead-free soldering processes and is RoHS compliant. It can be soldered using SnAgCu or other lead-free solder alloys.
The typical tolerance for the resistance value of CR2512-FX-15R0ELF is ±1%. However, it's essential to check the specific tolerance for the particular batch or lot number, as it may vary.
CR2512-FX-15R0ELF is a general-purpose chip resistor and is not optimized for high-frequency applications. For high-frequency applications, it's recommended to use a high-frequency chip resistor specifically designed for such applications.
Trust Checks
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CR2512-FX-15R0ELF Overview

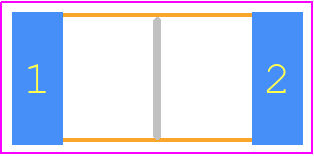

Use the download button to access the CR2512-FX-15R0ELF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CR251,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
