Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CR7983-CLD
- Part Number CR7983-CLD
- Manufacturer COILCRAFT
- Pin Count 8
- Part Category Transformer
- Package Category Other
- Footprint Name Other - 21.85mm x 21mm x 10.8mm
- Released Date Oct 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CR7983-CLD Details
-
Manufacturer Part Number:
CR7983-CLD
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CHIP
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
6.97
-
Application:
GENERAL PURPOSE
-
ET Product-Min:
18 V-us
-
Height:
10.8 mm
-
Input Voltage-Nom:
5 V
CR7983-CLD Frequently Asked Questions (FAQs)
-
Coilcraft provides a recommended land pattern for the CR7983-CLD in their datasheet, which includes a suggested pad layout and dimensions for optimal performance and reliability.
-
The CR7983-CLD has a maximum operating temperature of 125°C, but it's recommended to derate the current rating above 80°C to ensure reliability and prevent thermal runaway. Consult Coilcraft's application notes for more information.
-
The CR7983-CLD has a shielded construction, which helps reduce EMI and radiation. To maintain the shielding effectiveness, ensure that the inductor is placed on a solid ground plane and avoid placing other components or traces near the inductor that could compromise the shielding.
-
The SRF of the CR7983-CLD is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. Coilcraft provides an SRF calculator tool on their website to help estimate the SRF for their inductors.
-
The CR7983-CLD has a maximum current rating of 7.8 A, but it's essential to consider the inductor's temperature rise, core loss, and saturation characteristics when designing for high-current applications. Consult Coilcraft's application notes and simulation tools to ensure the inductor meets your specific requirements.
Trust Checks
Community Provided
System Verified
Community Approved
CR7983-CLD Overview

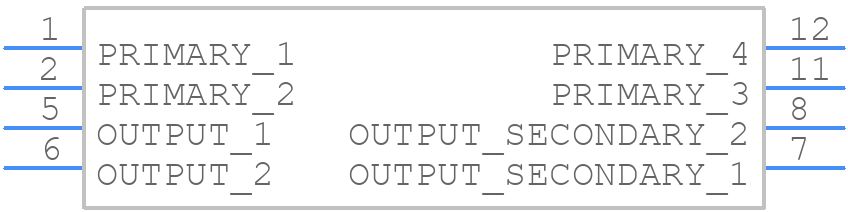

Use the download button to access the CR7983-CLD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CR798,
or try a keyword search, such as Pulse/Datacom Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
