CRCW25124R99FNEG - Vishay

Description: RESISTOR, 2512 4.99Ohm ± 1% 1W

Download CRCW25124R99FNEG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRCW25124R99FNEG - Vishay - PCB symbol
click to zoom
PCB Footprints

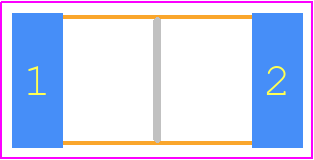

CRCW25124R99FNEG - Vishay PCB footprint - Resistor Chip - Resistor Chip - CRCW2512
click to zoom
3D Models
CRCW25124R99FNEG - Vishay - 3D model - Resistor Chip - CRCW2512
click to zoom

CRCW25124R99FNEG Details

  • Manufacturer Part Number:

    CRCW25124R99FNEG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP, HALOGEN FREE AND ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Israel

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    10

  • Additional Feature:

    RATED AC VOLTAGE (V): 500

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Packing Method:

    TR, BLISTER, 7 INCH

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    4.99 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    200 ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    500 V

CRCW25124R99FNEG Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the CRCW25124R99FNEG is 260°C to 270°C (500°F to 520°F) for a maximum of 10 seconds.
  • Yes, the CRCW25124R99FNEG is suitable for high-frequency applications up to 1 GHz due to its thin-film construction and low inductance.
  • The CRCW25124R99FNEG has a maximum operating temperature of 155°C (311°F). While it can tolerate high temperatures, it's not recommended for continuous operation above 125°C (257°F).
  • The power rating of the CRCW25124R99FNEG at 70°C is 0.25 W. However, it's essential to derate the power according to the ambient temperature and other environmental factors.
  • Yes, the CRCW25124R99FNEG is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
