CRFS-2304W - Nidec Copal

Description: Through Hole Slide Switch DP3T 100 (Non-Switching) mA, 100 (Switching) mA Slide

Download CRFS-2304W Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CRFS-2304W model

Email notifications will be applied after download.

Send part feedback

Symbol

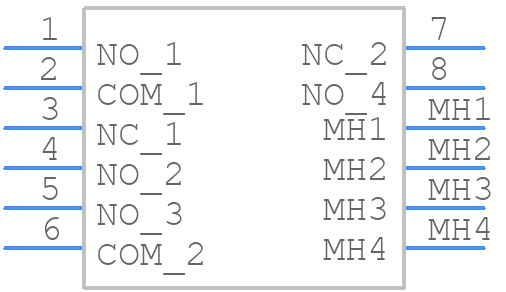

CRFS-2304W - Nidec Copal - PCB symbol

PCB Footprints

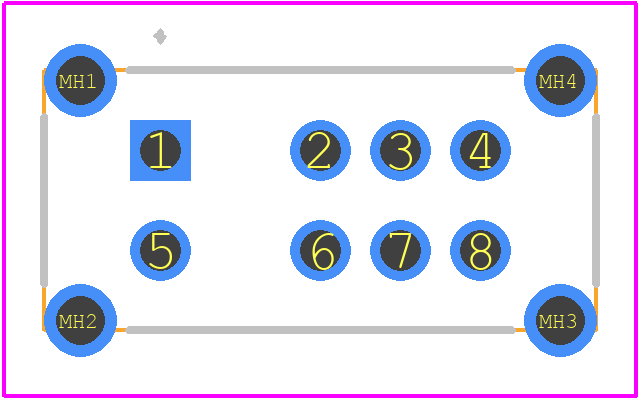

CRFS-2304W - Nidec Copal PCB footprint - Other - Other - CRFS-2304W-2

3D Models

CRFS-2304W - Nidec Copal - 3D model - Other - CRFS-2304W-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for CRFS-2304W
Part Number CRFS-2304W
Manufacturer Nidec Copal
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - CRFS-2304W-2
Released Date Nov 16, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CRFS-2304W Details

Manufacturer Part Number:
CRFS-2304W
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Nidec Copal Electronics Corporation
JESD-609 Code:
e4
Switch Type:
SLIDE SWITCH
Terminal Finish:
Gold (Au)

Trust Checks

Community Provided

System Verified

Community Approved

CRFS-2304W Overview

Use the download button to access the CRFS-2304W schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CRFS-, or try a keyword search, such as Slide Switches
