CRGH2512F24R9 - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Width .126 INCH | Product Height .022 INCH | Product Height .55 MM | Product Length 6.35 MM | Product Length .25 INCH | Product Width 3.2 MM | Electrical Characteristics: Operating Voltage 200 V | Resistance Value 24.9 OHM | Power Rating 2 WATT | Passive Component Tolerance 1 PCT | Resistance Class Up to 1kΩ | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Package Size Code 2512 | Element Type Thick Film | Res

Download CRGH2512F24R9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRGH2512F24R9 - TE Connectivity - PCB symbol
click to zoom

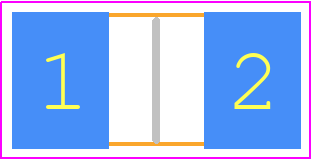

PCB Footprints
CRGH2512F24R9 - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - CRGH2512
click to zoom
3D Models
CRGH2512F24R9 - TE Connectivity - 3D model - Resistor Chip - CRGH2512
click to zoom

CRGH2512F24R9 Details

  • Manufacturer Part Number:

    CRGH2512F24R9

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    , 2512

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, Embossed, 7 Inch

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    24.9 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    250 V

CRGH2512F24R9 Frequently Asked Questions (FAQs)

  • The recommended land pattern for CRGH2512F24R9 is available in the TE Connectivity's application note or can be obtained by contacting their technical support. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
  • While CRGH2512F24R9 is a robust component, it's essential to evaluate its suitability for high-vibration environments. TE Connectivity provides vibration testing data and guidelines in their application notes or through technical support. Engineers should consult these resources to determine if the component meets their specific vibration requirements.
  • To prevent damage during PCB assembly, handle CRGH2512F24R9 by the edges, avoid touching the component's surface, and use anti-static wrist straps or mats. It's also recommended to follow TE Connectivity's recommended handling and storage procedures, which can be found in their application notes or through technical support.
  • The maximum allowable current for CRGH2512F24R9 is not explicitly stated in the datasheet. However, TE Connectivity provides derating curves and thermal resistance data in their application notes or through technical support. Engineers can use this information to determine the maximum allowable current for their specific application.
  • Yes, CRGH2512F24R9 is compatible with lead-free soldering processes. TE Connectivity ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and are compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profiles and guidelines provided by TE Connectivity to ensure reliable assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CRGH2512F24R9 Overview

Use the download button to access the CRGH2512F24R9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRGH2, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
