CRGH2512J47R - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Width .126 INCH | Product Length 6.35 MM | Product Height .55 MM | Product Height .022 INCH | Product Width 3.2 MM | Product Length .25 INCH | Electrical Characteristics: Operating Voltage 250 V | Power Rating 2 WATT | Resistance Value 47 OHM | Resistance Class Up to 1kΩ | Passive Component Tolerance 5 PCT | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Resistor Type Power Resistor | Package Size Code 2512 |

Download CRGH2512J47R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRGH2512J47R - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

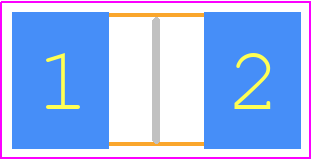

CRGH2512J47R - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - CRGH2512
click to zoom
3D Models
CRGH2512J47R - TE Connectivity - 3D model - Resistor Chip - CRGH2512
click to zoom

CRGH2512J47R Details

  • Manufacturer Part Number:

    CRGH2512J47R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, Embossed, 7 Inch

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    47 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    250 V

CRGH2512J47R Frequently Asked Questions (FAQs)

  • The recommended land pattern for CRGH2512J47R is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
  • Yes, CRGH2512J47R is designed to withstand high-vibration environments. TE Connectivity has tested this component to meet the requirements of IEC 60068-2-6, which includes vibration testing. However, it's essential to follow proper mounting and soldering techniques to ensure the component's reliability.
  • Yes, CRGH2512J47R is compatible with lead-free soldering processes. The component is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use with lead-free solder alloys.
  • The maximum operating temperature range for CRGH2512J47R is -55°C to +125°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and derating may be necessary to ensure reliable operation.
  • CRGH2512J47R is designed to operate in environments with relative humidity up to 95%. However, it's essential to follow proper conformal coating and sealing techniques to ensure the component's reliability in humid or moist environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CRGH2512J47R Overview

Use the download button to access the CRGH2512J47R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRGH2, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
