CRGH2512J56K - TE Connectivity

Description: TE Connectivity CRGH Series Thick Film Resistor 2512 Case 56kΩ ±5% 2W ±200ppm/°C

Download CRGH2512J56K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRGH2512J56K - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

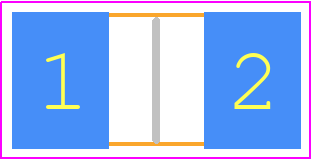

CRGH2512J56K - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - CRGH2512
click to zoom
3D Models
CRGH2512J56K - TE Connectivity - 3D model - Resistor Chip - CRGH2512
click to zoom

CRGH2512J56K Details

  • Manufacturer Part Number:

    CRGH2512J56K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, Embossed, 7 Inch

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    56000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    250 V

CRGH2512J56K Frequently Asked Questions (FAQs)

  • The recommended land pattern for CRGH2512J56K is available in the TE Connectivity's application note 'Chip Resistor Land Pattern' (document number 2012171). It provides detailed information on the recommended pad size, spacing, and geometry for optimal performance and reliability.
  • While CRGH2512J56K is a general-purpose chip resistor, it may not be suitable for high-frequency applications (>100 MHz) due to its internal construction and materials. For high-frequency applications, TE Connectivity offers specialized chip resistors with optimized designs and materials, such as the HF series.
  • CRGH2512J56K is a static-sensitive device. To prevent damage, handle the component with proper ESD protection, such as wrist straps, mats, and packaging. Avoid touching the component's pins or body, and ensure that the workspace is ESD-safe.
  • The MSL of CRGH2512J56K is MSL 1, which means it can withstand normal humidity and temperature conditions without special handling or storage requirements. However, it's still recommended to follow proper storage and handling procedures to prevent moisture-related damage.
  • While CRGH2512J56K meets the general requirements for automotive applications, it may not meet the specific requirements of certain automotive standards, such as AEC-Q200. For automotive applications, TE Connectivity offers specialized chip resistors that meet these standards, such as the AQ series.
