CRGH2512J56R - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Width 3.2 MM | Product Height .55 MM | Product Length 6.35 MM | Product Height .022 INCH | Product Length .25 INCH | Product Width .126 INCH | Electrical Characteristics: Resistance Class Up to 1kΩ | Resistance Value 56 OHM | Operating Voltage 250 V | Passive Component Tolerance 5 PCT | Power Rating 2 WATT | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Package Size Code 2512 | Resistor Type Power Resistor |

Download CRGH2512J56R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRGH2512J56R - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

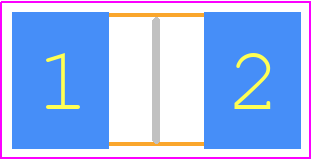

CRGH2512J56R - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - CRGH2512
click to zoom
3D Models
CRGH2512J56R - TE Connectivity - 3D model - Resistor Chip - CRGH2512
click to zoom

CRGH2512J56R Details

  • Manufacturer Part Number:

    CRGH2512J56R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, Embossed, 7 Inch

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    56 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    250 V

CRGH2512J56R Frequently Asked Questions (FAQs)

  • The recommended land pattern for CRGH2512J56R is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
  • Yes, CRGH2512J56R is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated and that the operating conditions do not exceed the maximum ratings specified in the datasheet.
  • To prevent damage, handle CRGH2512J56R by the edges or the body, avoiding touching the terminations or the component's surface. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Avoid bending, flexing, or applying excessive force to the component during assembly.
  • The recommended soldering profile for CRGH2512J56R is a reflow profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a ramp rate of 3°C/second. It's essential to follow the soldering profile recommended by TE Connectivity to ensure reliable assembly.
  • Yes, CRGH2512J56R is compatible with lead-free soldering processes. The component is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use with lead-free solders.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CRGH2512J56R Overview

Use the download button to access the CRGH2512J56R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRGH2, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
