CRGH2512J5R6 - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Height .022 INCH | Product Length 6.35 MM | Product Width .126 INCH | Product Width 3.2 MM | Product Length .25 INCH | Product Height .55 MM | Electrical Characteristics: Passive Component Tolerance 5 PCT | Resistance Value 5.6 OHM | Operating Voltage 250 V | Power Rating 2 WATT | Resistance Class Up to 1kΩ | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Element Type Thick Film | Resistor Type Power Resistor

Download CRGH2512J5R6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRGH2512J5R6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

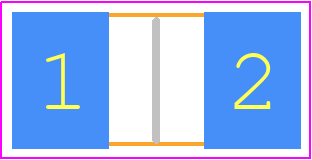

CRGH2512J5R6 - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - CRGH2512
click to zoom
3D Models
CRGH2512J5R6 - TE Connectivity - 3D model - Resistor Chip - CRGH2512
click to zoom

CRGH2512J5R6 Details

  • Manufacturer Part Number:

    CRGH2512J5R6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, Embossed, 7 Inch

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    5.6 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    200 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    250 V

CRGH2512J5R6 Frequently Asked Questions (FAQs)

  • The recommended land pattern for CRGH2512J5R6 is a rectangular pad with a size of 1.3mm x 1.3mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a minimum clearance of 0.2mm from the component body.
  • Yes, CRGH2512J5R6 is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated for temperature and other environmental factors to ensure reliable operation.
  • Yes, CRGH2512J5R6 is compatible with lead-free soldering processes. The component is designed to meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and can be soldered using lead-free solder alloys.
  • The maximum power rating for CRGH2512J5R6 is 250mW. It's essential to ensure that the component is operated within its specified power rating to prevent overheating and ensure reliable operation.
  • Yes, CRGH2512J5R6 is suitable for high-frequency applications up to 5GHz. The component's low equivalent series resistance (ESR) and high self-resonant frequency make it suitable for use in high-frequency circuits.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CRGH2512J5R6 Overview

Use the download button to access the CRGH2512J5R6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRGH2, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
