CRGH2512J68R - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Width 3.2 MM | Product Length .25 INCH | Product Height .022 INCH | Product Length 6.35 MM | Product Height .55 MM | Product Width .126 INCH | Electrical Characteristics: Operating Voltage 250 V | Resistance Value 68 OHM | Power Rating 2 WATT | Resistance Class Up to 1kΩ | Passive Component Tolerance 5 PCT | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Package Size Code 2512 | Element Type Thick Film | Resis

Download CRGH2512J68R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRGH2512J68R - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

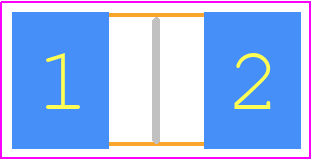

CRGH2512J68R - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - CRGH2512
click to zoom
3D Models
CRGH2512J68R - TE Connectivity - 3D model - Resistor Chip - CRGH2512
click to zoom

CRGH2512J68R Details

  • Manufacturer Part Number:

    CRGH2512J68R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, Embossed, 7 Inch

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    68 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    250 V

CRGH2512J68R Frequently Asked Questions (FAQs)

  • The recommended land pattern for CRGH2512J68R is a rectangular pad with a size of 1.3mm x 1.3mm, with a non-solder mask defined (NSMD) pad shape. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal stress.
  • Yes, CRGH2512J68R is designed to withstand high-vibration environments. It has a robust construction and is qualified to meet the requirements of various industry standards, including IEC 60068-2-6, which covers vibration testing. However, it's essential to consult the datasheet and application notes for specific vibration testing parameters and guidelines.
  • To prevent damage during PCB assembly, handle the CRGH2512J68R by the edges, avoiding touching the component body or leads. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Also, ensure that the PCB is clean and free of debris to prevent contamination and ensure reliable soldering.
  • The maximum allowable current for CRGH2512J68R is 1.25A per resistor element, based on a 70°C temperature rise. However, it's essential to consider the specific application requirements, including the operating temperature, and to consult the datasheet and application notes for derating guidelines to ensure reliable operation.
  • Yes, CRGH2512J68R is designed to operate in high-temperature environments, with a maximum operating temperature of 150°C. However, it's essential to consider the temperature derating guidelines provided in the datasheet and application notes to ensure reliable operation and to prevent thermal stress.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CRGH2512J68R Overview

Use the download button to access the CRGH2512J68R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRGH2, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
