CRGS2512J4K7 - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Length .25 INCH | Product Length 6.35 MM | Product Width .126 INCH | Product Width 3.2 MM | Product Height .55 MM | Product Height .022 INCH | Electrical Characteristics: Passive Component Tolerance 5 PCT | Power Rating 1.5 WATT | Resistance Class 1kΩ – 1MΩ | Resistance Value 4.7K OHM | Operating Voltage 250 V | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Package Size Code 2512 | Element Type Thick Film

Download CRGS2512J4K7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRGS2512J4K7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

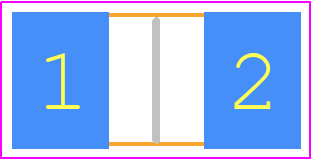

CRGS2512J4K7 - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - CRGS2512
click to zoom
3D Models
CRGS2512J4K7 - TE Connectivity - 3D model - Resistor Chip - CRGS2512
click to zoom

CRGS2512J4K7 Details

  • Manufacturer Part Number:

    CRGS2512J4K7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Construction:

    RECTANGULAR PACKAGE

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    1.5 W

  • Rated Temperature:

    70 °C

  • Resistance:

    4700 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    250 V

CRGS2512J4K7 Frequently Asked Questions (FAQs)

  • The recommended land pattern for CRGS2512J4K7 is a rectangular pad with a size of 2.5mm x 1.2mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a minimum clearance of 0.2mm from the component body.
  • Yes, CRGS2512J4K7 is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated for temperature and other environmental factors to ensure reliable operation.
  • Yes, CRGS2512J4K7 is compatible with lead-free soldering processes. The component is designed to meet the requirements of RoHS and WEEE directives, and it can withstand the higher temperatures associated with lead-free soldering.
  • The typical tolerance for the capacitance value of CRGS2512J4K7 is ±10%. This means that the actual capacitance value may vary by up to 10% from the nominal value of 4.7uF.
  • Yes, CRGS2512J4K7 is designed to withstand high-vibration environments. The component is built with a robust construction and is suitable for use in applications where vibration is a concern, such as in automotive or industrial control systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CRGS2512J4K7 Overview

Use the download button to access the CRGS2512J4K7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRGS2, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
