CRGS2512J68R - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Height .55 MM | Product Width .126 INCH | Product Height .022 INCH | Product Width 3.2 MM | Product Length .25 INCH | Product Length 6.35 MM | Electrical Characteristics: Operating Voltage 250 V | Power Rating 1.5 WATT | Passive Component Tolerance 5 PCT | Resistance Value 68 OHM | Resistance Class Up to 1kΩ | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Package Size Code 2512 | Resistor Type General Purpose

Download CRGS2512J68R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRGS2512J68R - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

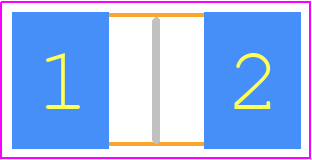

CRGS2512J68R - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - CRGS2512
click to zoom
3D Models
CRGS2512J68R - TE Connectivity - 3D model - Resistor Chip - CRGS2512
click to zoom

CRGS2512J68R Details

  • Manufacturer Part Number:

    CRGS2512J68R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    RECTANGULAR PACKAGE

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    1.5 W

  • Rated Temperature:

    70 °C

  • Resistance:

    68 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    250 V

CRGS2512J68R Frequently Asked Questions (FAQs)

  • The recommended land pattern for CRGS2512J68R is a rectangular pad with a size of 1.3mm x 1.3mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
  • Yes, CRGS2512J68R is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the component's electrical characteristics may degrade at elevated temperatures, so it's essential to consult the datasheet and perform thermal simulations to ensure reliable operation.
  • To prevent damage, handle CRGS2512J68R by the edges or the body, avoiding touching the terminations or the component's surface. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Avoid bending, flexing, or applying excessive force to the component during assembly.
  • The recommended soldering profile for CRGS2512J68R is a reflow profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a ramp rate of 3°C/second. Consult the datasheet and industry standards (e.g., IPC-J-STD-020) for more detailed guidance.
  • Yes, CRGS2512J68R is compatible with lead-free soldering processes. The component is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives, making it suitable for use in lead-free soldering applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CRGS2512J68R Overview

Use the download button to access the CRGS2512J68R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRGS2, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
