Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure optimal performance, low EMI, and high reliability.
To minimize the impact of SRF, ensure the inductor is used below its SRF, and consider adding a decoupling capacitor to filter out high-frequency noise. Additionally, use a shielded inductor or add a shield to reduce EMI.
The maximum allowable current is dependent on the inductor's temperature rating. For the CRM2512-FX-1501ELF, the maximum current rating is 1.5A. Exceeding this rating can lead to overheating, reducing the inductor's lifespan. Ensure the inductor operates within its specified temperature range (-40°C to 125°C) to maintain reliability.
The DCR of the CRM2512-FX-1501ELF is 0.45Ω. To minimize power losses, consider the DCR when designing your circuit, especially in high-current applications. You may need to adjust your circuit's impedance or add a bypass capacitor to compensate for the DCR.
Yes, handle the inductors with care to prevent mechanical damage. Store them in a dry, cool place, away from direct sunlight and moisture. Avoid bending, flexing, or applying excessive force, which can cause damage to the internal windings or terminations.
Trust Checks
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CRM2512-FX-1501ELF Overview

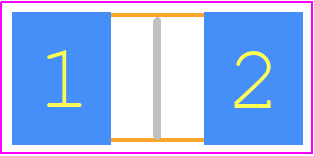

Use the download button to access the CRM2512-FX-1501ELF schematic symbol, PCB footprint, and 3D model.
