CS0305U - Same Sky

Description: 15 mm, 5 Vcc, Bipolar, Through Hole, 3 Rated Current, 0~6 Linearity Range, Open Loop Current Sensor

Download CS0305U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

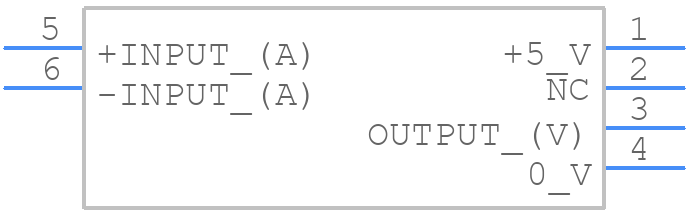

CS0305U - Same Sky - PCB symbol
click to zoom
PCB Footprints
CS0305U - Same Sky PCB footprint - Other - Other - CS0305U-2
click to zoom
3D Models
CS0305U - Same Sky - 3D model - Other - CS0305U-2
click to zoom

CS0305U Details

  • Manufacturer Part Number:

    CS0305U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Manufacturer:

    Same Sky

  • Body Breadth:

    15 mm

  • Body Height:

    20 mm

  • Body Length or Diameter:

    15 mm

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Range:

    2.26-2.34V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

CS0305U Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the CS0305U is -40°C to 125°C.
  • Yes, the CS0305U is designed to operate in humid environments, but it's recommended to follow proper sealing and encapsulation procedures to prevent moisture ingress.
  • The maximum allowable voltage deviation for the CS0305U is ±10% of the rated voltage.
  • It's recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
  • Yes, the CS0305U is designed to withstand moderate levels of vibration and shock, but it's recommended to follow proper mounting and installation procedures to ensure reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CS0305U Overview

Use the download button to access the CS0305U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS030, or try a keyword search, such as Other Sensors/Transducers
