CS03120B - Same Sky

Description: 15 mm, ±12 Vcc, Bipolar, Through Hole, ±3 Rated Current, -6~6 Linearity Range, Open Loop Current Sensor

Download CS03120B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

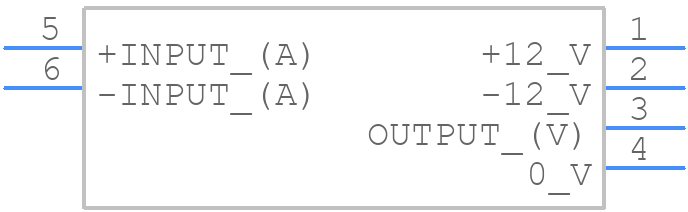

CS03120B - Same Sky - PCB symbol
click to zoom
PCB Footprints
CS03120B - Same Sky PCB footprint - Other - Other - CS03120B-1
click to zoom
3D Models
CS03120B - Same Sky - 3D model - Other - CS03120B-1
click to zoom

CS03120B Details

  • Manufacturer Part Number:

    CS03120B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Manufacturer:

    Same Sky

  • Body Breadth:

    15 mm

  • Body Height:

    20 mm

  • Body Length or Diameter:

    15 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Range:

    3.96-4.04V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PBT

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    12.6 V

  • Supply Voltage-Min:

    11.4 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

CS03120B Frequently Asked Questions (FAQs)

  • CUI Devices recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output stages. Additionally, keep the input and output traces as short as possible and avoid routing them near noise-sensitive components.
  • Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments. Also, follow the recommended derating curves for output power and ambient temperature.
  • CUI Devices recommends keeping the output cable length as short as possible, but a maximum length of 10 inches (25 cm) is recommended to minimize voltage drop and ensure reliable operation.
  • Yes, the CS03120B can be used in redundant or parallel configurations, but it's essential to follow proper design guidelines and ensure that the devices are properly synchronized and isolated to avoid oscillations or instability.
  • CUI Devices recommends using a low-ESR ceramic capacitor with a value of 10-22 μF, depending on the input voltage and output current requirements. The capacitor should be placed as close as possible to the input pins of the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CS03120B Overview

Use the download button to access the CS03120B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS031, or try a keyword search, such as Other Sensors/Transducers

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
