Cirrus Logic provides a recommended PCB layout guide in their application note AN553, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The CS2100CP-EZZ can be configured for different clock frequencies using the Clock Control Register (CCR). The CCR allows the user to select the clock source, clock frequency, and clock mode. Refer to the datasheet for specific register settings and clock frequency ranges.
The CS2100CP-EZZ has an absolute maximum input voltage rating of 5.5V. Exceeding this voltage can cause permanent damage to the device. It is recommended to operate the device within the recommended operating voltage range of 3.3V to 5V.
Cirrus Logic provides a troubleshooting guide in their application note AN555, which includes common issues, symptoms, and solutions. Additionally, engineers can use the device's built-in diagnostic features, such as the Error Detection and Correction (EDC) mechanism, to identify and debug issues.
Yes, the CS2100CP-EZZ is compatible with various digital audio interfaces, including I2S, TDM, and SPDIF. The device can be configured to support different interface modes using the Audio Interface Control Register (AICR). Refer to the datasheet for specific register settings and interface configurations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS2100CP-EZZ Overview

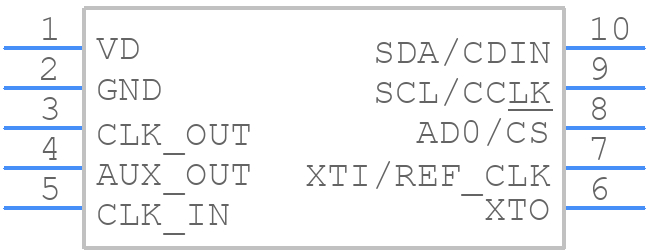

Use the download button to access the CS2100CP-EZZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS210,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
