CS4202-JQZ - Cirrus Logic

Description: Audio Codec ’97 with Headphone Amplifier

Download CS4202-JQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

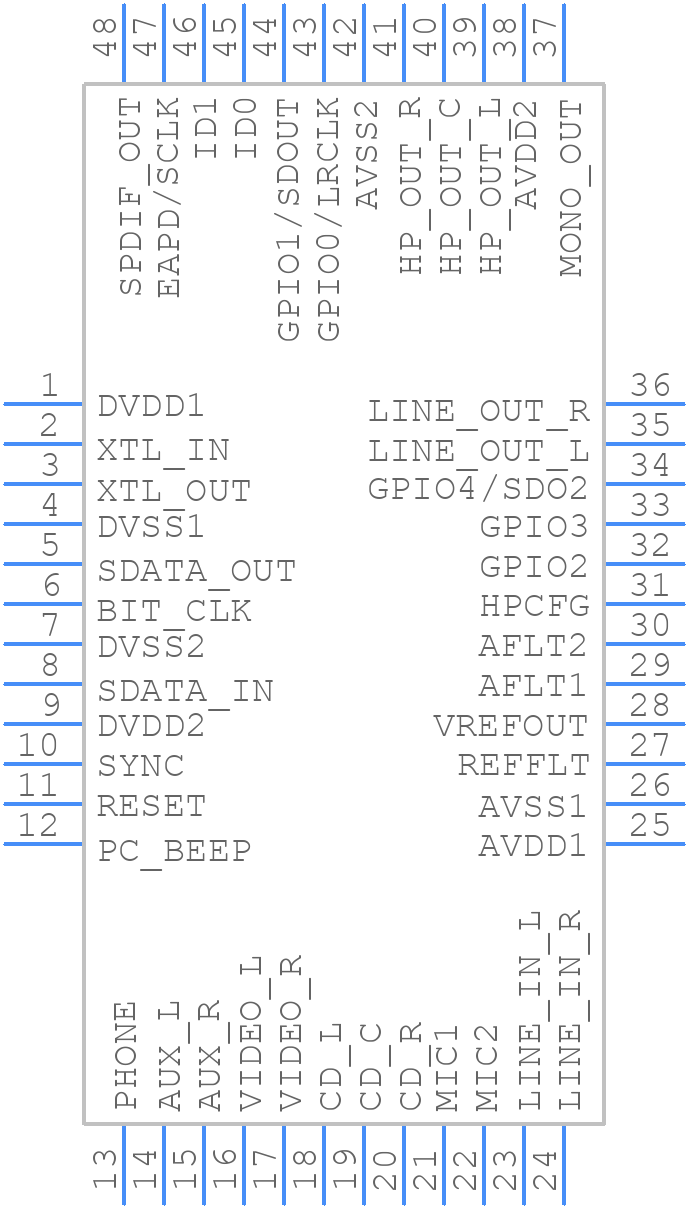

CS4202-JQZ - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
CS4202-JQZ - Cirrus Logic PCB footprint - Other - Other - QFP50P900X900X160-48N
click to zoom

CS4202-JQZ Details

  • Manufacturer Part Number:

    CS4202-JQZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    9 X 9 MM, 1.40 MM HEIGHT, LEAD FREE, MS-022, TQFP-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO REQUIRES 3.135V TO 3.465V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

CS4202-JQZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply analog power (AVDD) first, followed by digital power (DVDD), and then clock and reset signals.
  • The CS4202-JQZ can be configured for master or slave mode by setting the M/S bit in the Control Register 1 (CR1). A '1' sets the device to master mode, while a '0' sets it to slave mode.
  • The analog power-down mode (APD) shuts down the analog circuitry, while the digital power-down mode (DPD) shuts down the digital circuitry. These modes can be used to reduce power consumption when the device is not in use.
  • The CS4202-JQZ has a dedicated mute pin (MUTE) that can be used to mute the analog outputs. Asserting the MUTE pin will mute the analog outputs, while de-asserting it will unmute them.
  • The recommended layout and routing for the CS4202-JQZ involves separating the analog and digital circuits, using a solid ground plane, and minimizing the length of the analog signal traces.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

CS4202-JQZ Overview

Use the download button to access the CS4202-JQZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CS420, or try a keyword search, such as Other Consumer ICs
