CS4205-KQZ - Cirrus Logic

Description: IC CODEC AC97 I2S 48-LQFP

Download CS4205-KQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

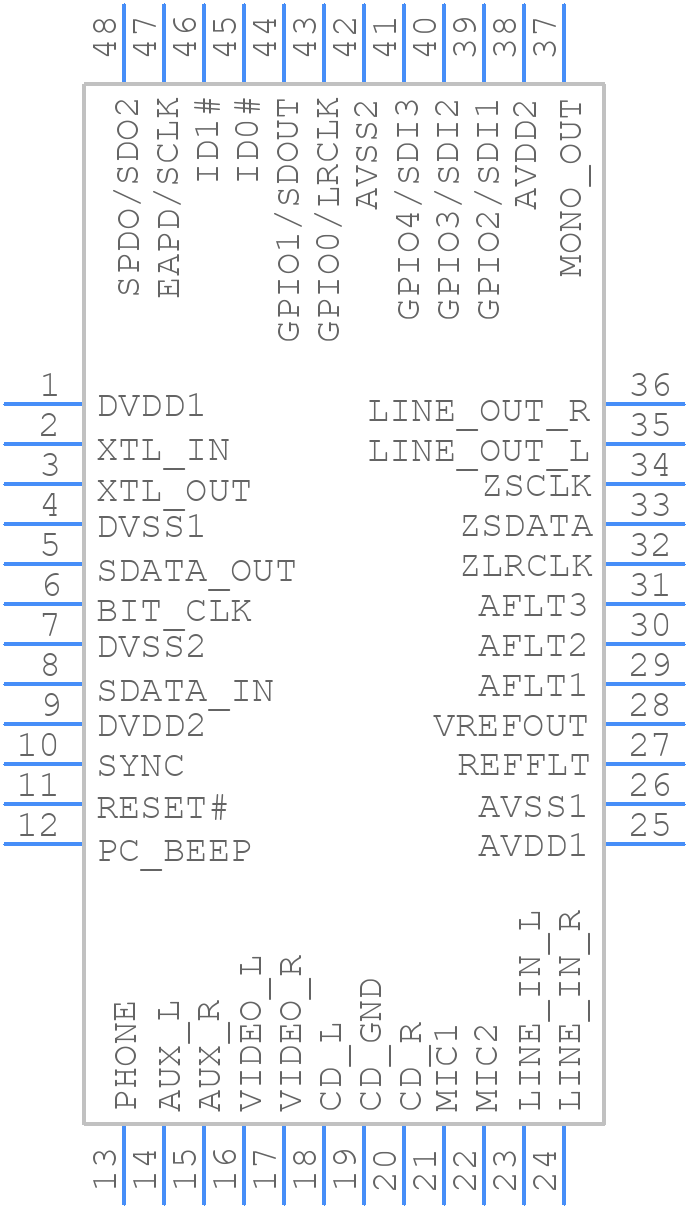

CS4205-KQZ - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
CS4205-KQZ - Cirrus Logic PCB footprint - Quad Flat Packages - Quad Flat Packages - 48L LQFP
click to zoom
3D Models
CS4205-KQZ - Cirrus Logic - 3D model - Quad Flat Packages - 48L LQFP
click to zoom

CS4205-KQZ Details

  • Manufacturer Part Number:

    CS4205-KQZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    9 X 9 MM, 1.40 MM HEIGHT, LEAD FREE, MS-022, TQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES 3.3V POWER SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

CS4205-KQZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization and prevents damage to the device.
  • The CS4205-KQZ can be configured as a master or slave device using the M/S pin. Connect the M/S pin to VDDIO for master mode or to GND for slave mode. Additionally, the device can be configured using the I2C interface.
  • The CS4205-KQZ supports clock frequencies up to 50 MHz. However, the recommended clock frequency is 12.288 MHz for optimal performance.
  • The CS4205-KQZ has a dedicated mute pin (MUTE) that can be used to mute the audio output. Asserting the MUTE pin low will mute the audio output. Additionally, the device can be muted using the I2C interface by writing to the appropriate register.
  • The recommended layout and routing for the CS4205-KQZ involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CS4205-KQZ Overview

Use the download button to access the CS4205-KQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS420, or try a keyword search, such as Other Consumer ICs
