CS4220-KSZ - Cirrus Logic

Description: Interface - CODECs IC 24Bit Str Audio CODEC 3V Intrfc

Download CS4220-KSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

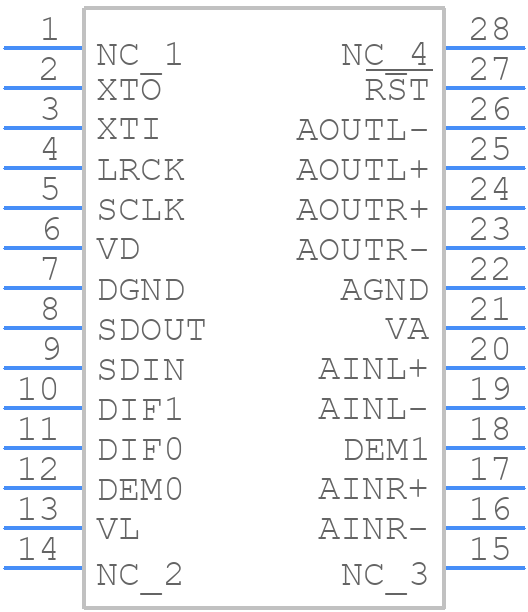

CS4220-KSZ - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
CS4220-KSZ - Cirrus Logic PCB footprint - Small Outline Packages - Small Outline Packages - 28L SSOP
click to zoom
3D Models
CS4220-KSZ - Cirrus Logic - 3D model - Small Outline Packages - 28L SSOP
click to zoom

CS4220-KSZ Details

  • Manufacturer Part Number:

    CS4220-KSZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MO-150, SSOP-28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.13 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

CS4220-KSZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDA, and then the clock signal. This ensures proper initialization of the device.
  • The CS4220-KSZ can be configured for master or slave mode by setting the M/S bit in the Control Register (address 0x01). A '1' sets the device to master mode, while a '0' sets it to slave mode.
  • The CS4220-KSZ supports clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • The CS4220-KSZ has a dedicated mute pin (MUTE) that can be used to mute the audio output. Asserting the MUTE pin will mute the audio output. Additionally, the device also has a software-controlled mute function that can be enabled through the Control Register.
  • The recommended layout and routing for the CS4220-KSZ involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. It is also recommended to use a decoupling capacitor between VDD and VSS.
