The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog power supplies (AVDD and DVDD). This ensures proper device operation and prevents potential damage.
To optimize ADC performance, ensure proper PCB layout, use a low-noise power supply, and decouple the analog power pins (AVDD and AVSS) with 10uF and 100nF capacitors. Additionally, use a clock frequency between 256fs and 512fs to minimize jitter.
The digital filter is used to attenuate out-of-band noise and improve ADC performance. Configure the filter by setting the appropriate registers (e.g., FILT0, FILT1, and FILT2) to select the desired filter response and cutoff frequency.
Interface the CS4265-CNZ with a microcontroller or DSP using a serial interface (SPI or I2C) to control the device's registers and configure its operation. Ensure proper synchronization and data formatting to ensure reliable data transfer.
The CS4265-CNZ has a maximum junction temperature (TJ) of 150°C. Ensure reliable operation by providing adequate heat dissipation, using a thermal pad or heat sink if necessary, and avoiding excessive power consumption or high ambient temperatures.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS4265-CNZ Overview

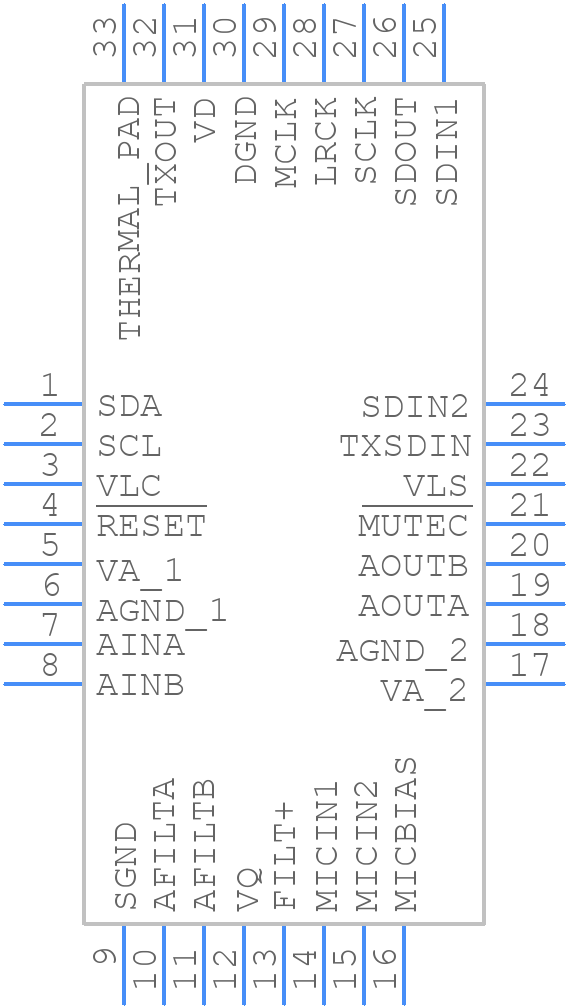

Use the download button to access the CS4265-CNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS426,
or try a keyword search, such as Other Consumer ICs
