The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization and prevents damage to the device.
The CS4265-DNZR can be configured for master or slave mode by setting the M/S pin high or low, respectively. In master mode, the device generates the clock signal, while in slave mode, it receives the clock signal from an external source.
The CS4265-DNZR supports clock frequencies up to 192 kHz, but the maximum frequency may vary depending on the specific application and system requirements.
To optimize the CS4265-DNZR for low power consumption, use the power-down mode, reduce the clock frequency, and minimize the number of active channels. Additionally, ensure that the device is properly configured and that unnecessary features are disabled.
The recommended layout and routing for the CS4265-DNZR involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. It's also essential to follow the datasheet's guidelines for pin placement and routing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS4265-DNZR Overview

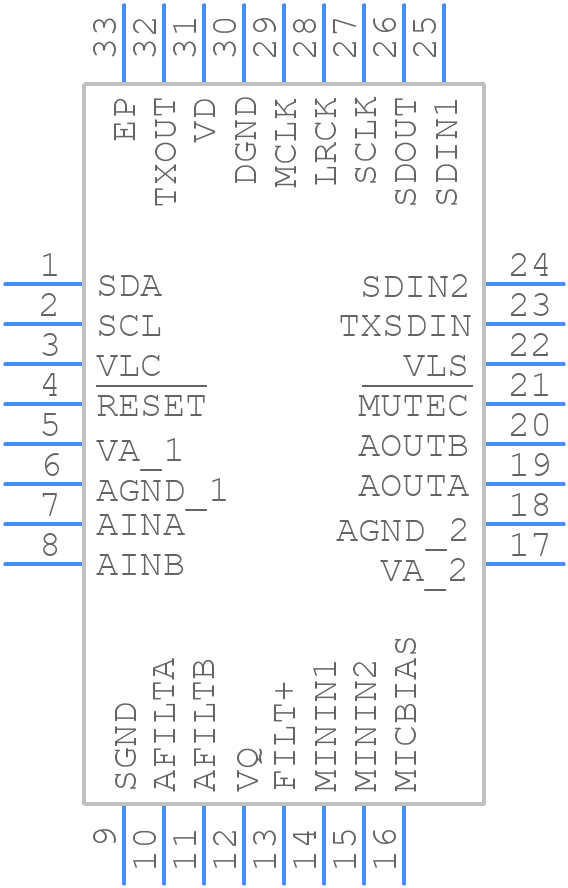

Use the download button to access the CS4265-DNZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS426,
or try a keyword search, such as Other Consumer ICs
