CS42L42-CWZR footprint, schematic symbol and 3D model by Cirrus Logic

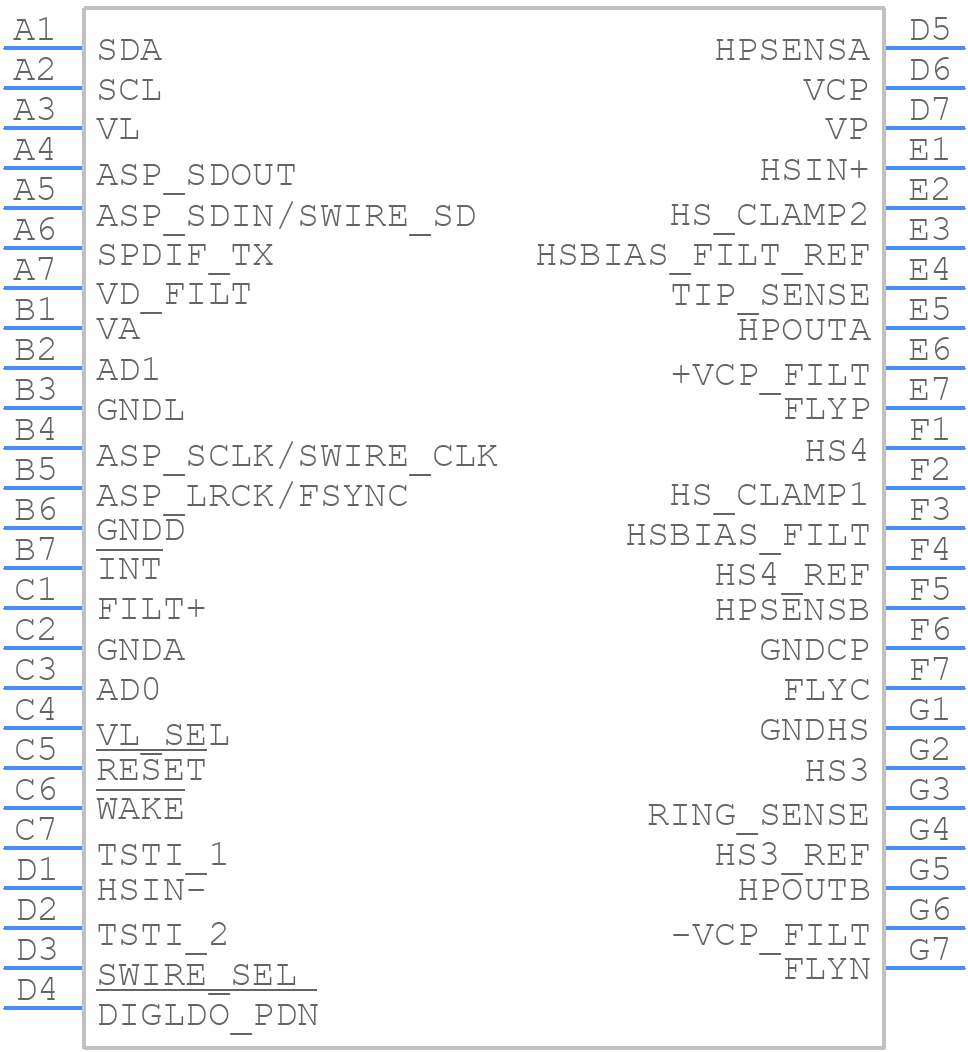

Symbol

PCB Footprints

3D Models

CS42L42-CWZR Details

The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
To configure the CS42L42-CWZR for master clock mode, set the MCLK pin as the clock source, and set the MCLKDIV pin to select the desired clock frequency. Additionally, set the BCLK pin to the desired bit clock frequency.
The maximum allowed capacitance for the analog input pins is 10nF. Exceeding this value may affect the device's performance and stability.
To optimize the CS42L42-CWZR for low power consumption, use the power-down modes (e.g., PDN, PDNR) when not in use, reduce the clock frequency, and minimize the analog input signal amplitude.
The recommended layout and routing for the CS42L42-CWZR involves keeping analog and digital signals separate, using a solid ground plane, and minimizing signal trace lengths and vias.

Community Provided

System Verified

Community Approved

Use the download button to access the CS42L42-CWZR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CS42L, or try a keyword search, such as Codecs
