The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper device initialization and prevents latch-up.
To configure the CS42L51-CNZ for master clock mode, set the MCLK pin as the clock source, and ensure the MCLK frequency is within the specified range (10-50 MHz). Also, set the BCLK pin to the desired bit clock frequency.
The PDN (Power Down) pin is an active-low input that puts the device into a low-power state when driven low. Connect the PDN pin to a logic low signal or ground to enable power-down mode.
To optimize the CS42L51-CNZ for low power consumption, use the power-down mode, reduce the clock frequency, and minimize the number of active channels. Additionally, consider using the device's built-in power-saving features, such as the automatic power-down mode.
To ensure optimal performance, follow these layout and routing guidelines: keep analog and digital signals separate, use a solid ground plane, and minimize trace lengths and impedance mismatches. Also, ensure that the device's power supply pins are decoupled with capacitors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS42L51-CNZ Overview

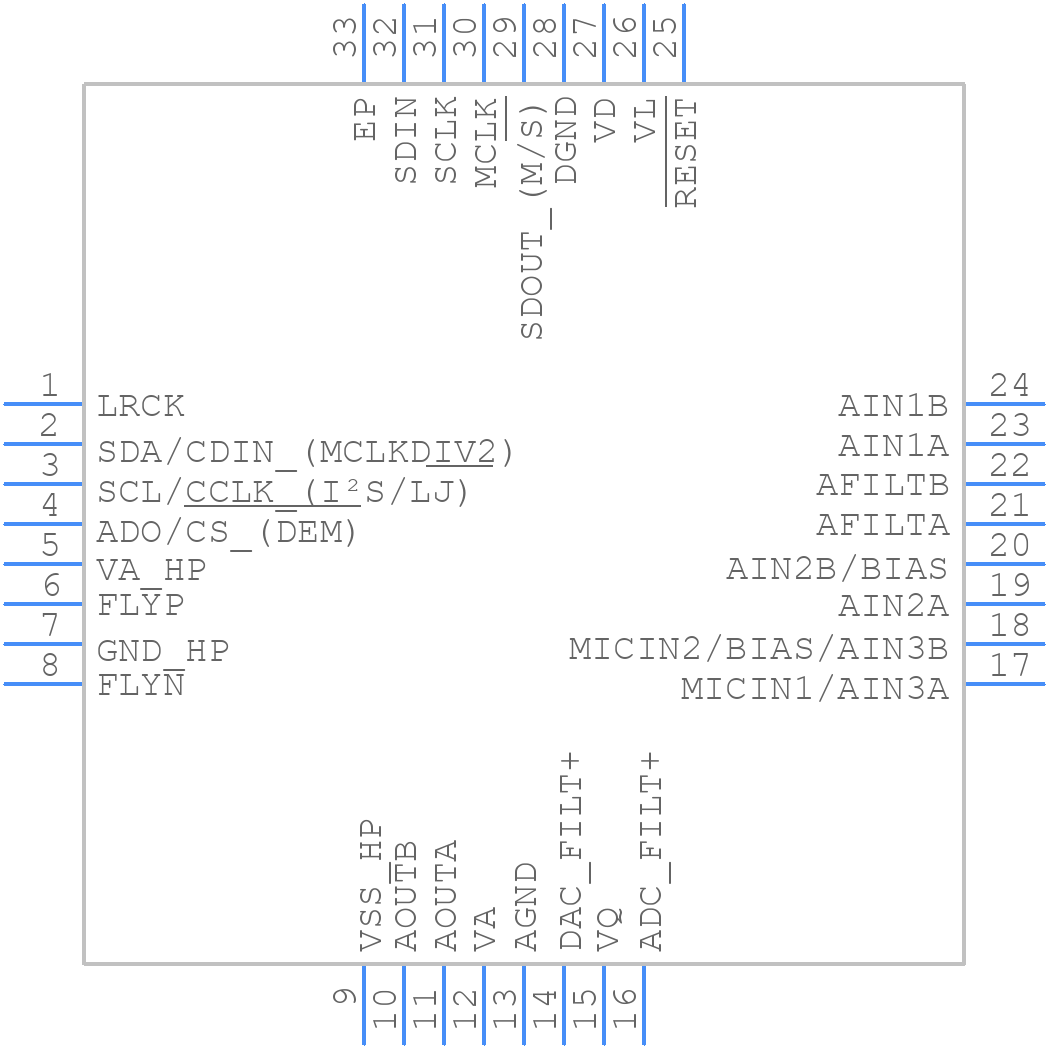

Use the download button to access the CS42L51-CNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS42L,
or try a keyword search, such as Other Consumer ICs
