The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then clock signals. This ensures proper device initialization and prevents latch-up conditions.
To configure the CS42L51-DNZR for master clock mode, set the MCLK pin as the clock source, and ensure the MCLK frequency is within the specified range (10-50 MHz). Additionally, set the BCLK pin as the bit clock output, and configure the LRCLK pin as the frame clock output.
The maximum allowed capacitance on the VDD and VDDIO pins is 10 μF. Exceeding this value may cause power-up issues or affect the device's performance.
A solid ground plane is essential for the CS42L51-DNZR. Use a multi-layer PCB with a dedicated ground plane, and ensure that all ground pins are connected to this plane. Decouple the VDD and VDDIO pins with 0.1 μF and 10 μF capacitors, respectively, placed as close to the pins as possible.
Keep analog and digital signals separate, using separate layers or regions on the PCB. Route analog signals (e.g., audio) away from digital signals (e.g., clock, data) to minimize noise and interference. Use shielded cables or twisted pairs for analog signals, and avoid running them near the device's digital pins.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS42L51-DNZR Overview

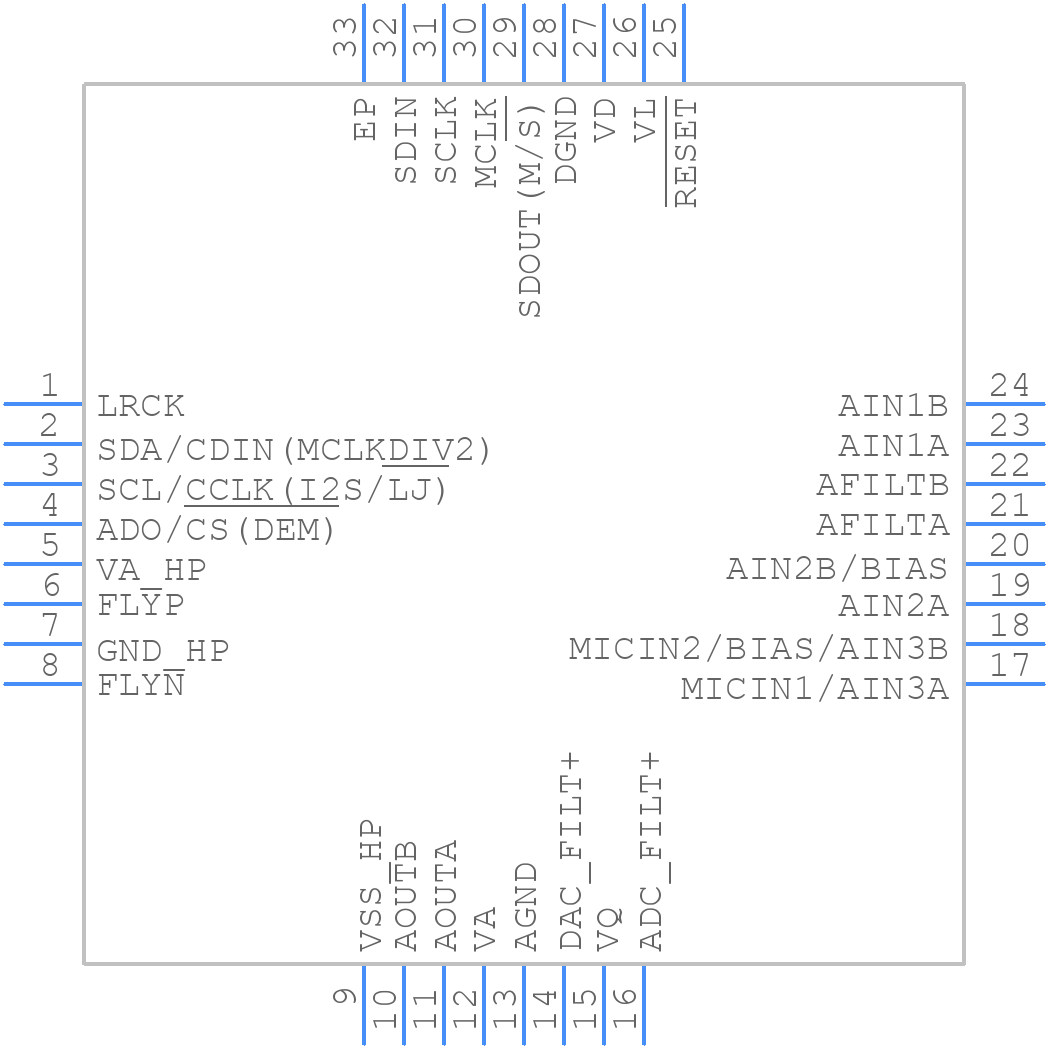

Use the download button to access the CS42L51-DNZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS42L,
or try a keyword search, such as Other Consumer ICs
