The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization and prevents damage to the device.
To configure the CS43131-CNZR for master clock mode, set the MCLK pin as an output by writing to the Clock Control Register (CCR). Then, set the desired clock frequency using the Clock Frequency Register (CFR).
The maximum allowed capacitance for the VDD and VCC bypass capacitors is 10uF. Exceeding this value may cause instability or oscillation in the power supply.
To optimize the CS43131-CNZR for low power consumption, use the Power Management Register (PMR) to enable the low-power mode, reduce the clock frequency, and disable unused features. Additionally, ensure that the analog and digital power supplies are properly decoupled.
The recommended layout and routing for the CS43131-CNZR involves keeping the analog and digital power supplies separate, using a star-ground configuration, and minimizing the length of the clock signal traces. Additionally, ensure that the sensitive analog signals are routed away from noisy digital signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS43131-CNZR Overview

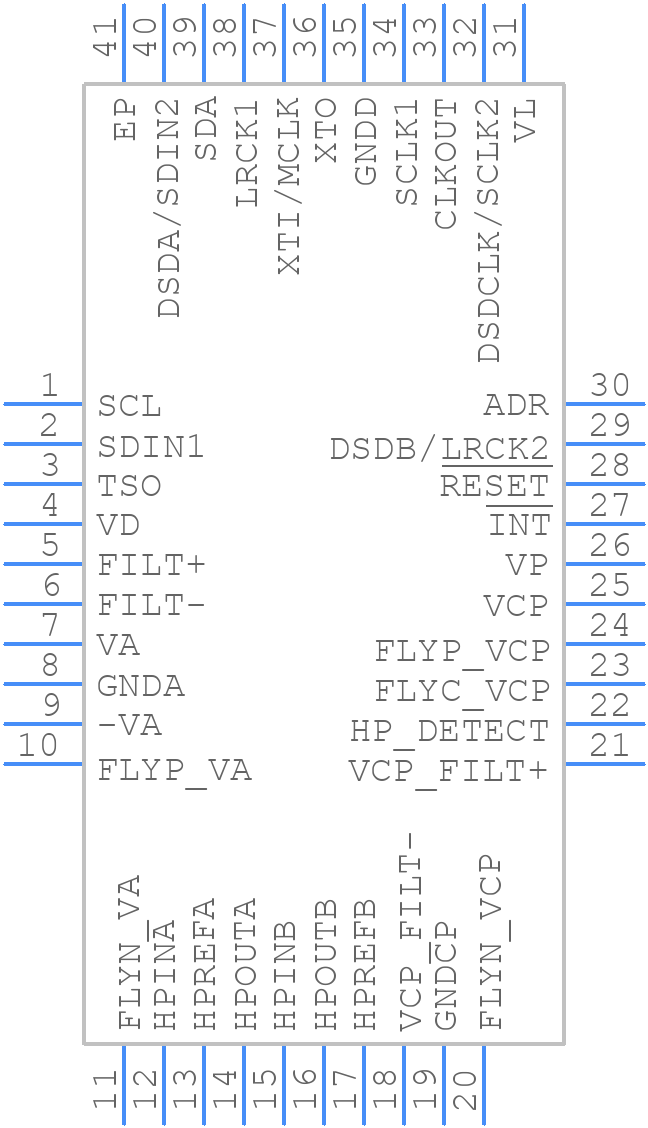

Use the download button to access the CS43131-CNZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS431,
or try a keyword search, such as Digital to Analog Converters
