CS4341A-KSZ - Cirrus Logic

Description: 24-Bit, 96 kHz Stereo DAC with Volume Control

Download CS4341A-KSZ Model

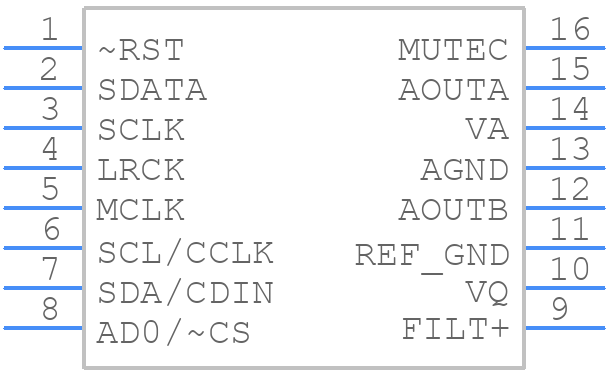

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CS4341A-KSZ - Cirrus Logic PCB footprint - Other - Other - SOIC127P600X175-16N
click to zoom

CS4341A-KSZ Details

  • Manufacturer Part Number:

    CS4341A-KSZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, LEAD FREE, MS-012, SOIC-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    2.88 V

  • Analog Output Voltage-Min:

    1.8 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

CS4341A-KSZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization of the device.
  • To optimize performance in a noisy environment, use a low-pass filter on the analog input, ensure proper grounding and shielding of the device, and consider using a ferrite bead or common-mode choke to reduce electromagnetic interference (EMI).
  • The maximum clock frequency is 256 fs (3840 kHz), but it's recommended to use a clock frequency between 128 fs and 192 fs for optimal performance.
  • To configure the CS4341A-KSZ for differential analog input, connect the positive analog input to the IN+ pin and the negative analog input to the IN- pin, and set the DIFF bit in the Control Register to '1'.
  • Keep analog and digital traces separate, use a solid ground plane, and avoid running digital traces near the analog input pins. Also, use a low-impedance power supply and decouple the power pins with capacitors.
