The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization of the device.
To optimize performance in a noisy environment, ensure proper grounding and shielding of the device, use a low-pass filter to remove high-frequency noise, and consider using a ferrite bead or common-mode choke to reduce electromagnetic interference.
The maximum clock frequency that can be used with the CS4344-DZZ is 192 kHz. Exceeding this frequency may result in reduced performance or device malfunction.
To configure the CS4344-DZZ for master clock mode, connect the MCLK pin to a clock source, set the MCLKDIV pin to the desired clock division ratio, and ensure that the BCLK pin is not connected to a clock source.
The recommended layout and routing for the CS4344-DZZ involves keeping analog and digital signals separate, using a ground plane to reduce noise, and minimizing trace lengths and impedance mismatches.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS4344-DZZ Overview

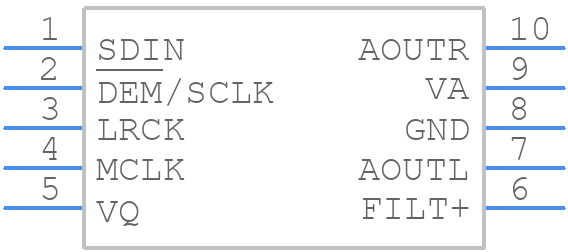

Use the download button to access the CS4344-DZZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS434,
or try a keyword search, such as Digital to Analog Converters
