CS4397-KSZ - Cirrus Logic

Description: Audio D/A Converter ICs IC 24Bit 192 kHz DAC for Digital Audio

Download CS4397-KSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

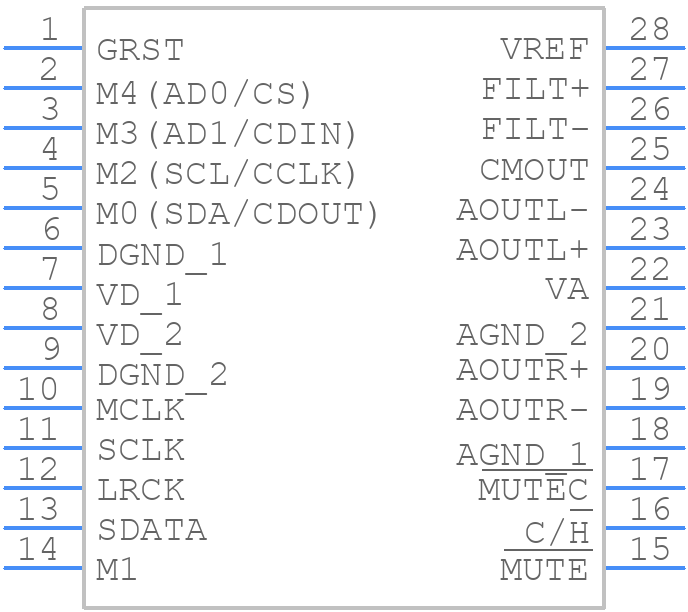

Symbol
CS4397-KSZ - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
CS4397-KSZ - Cirrus Logic PCB footprint - Small Outline Packages - Small Outline Packages - 28L SOIC (300 MIL BODY)
click to zoom
3D Models
CS4397-KSZ - Cirrus Logic - 3D model - Small Outline Packages - 28L SOIC (300 MIL BODY)
click to zoom

CS4397-KSZ Details

  • Manufacturer Part Number:

    CS4397-KSZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, MS-013, SOIC-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

CS4397-KSZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization of the device.
  • To configure the CS4397-KSZ for master clock mode, set the MCLK pin as an output by writing to the Clock Control Register (CCR). Then, set the desired clock frequency using the Clock Frequency Register (CFR).
  • The Zero Flag (ZF) pin is an output that indicates when the digital signal processing (DSP) core is in a zero-flag state, which can be used to synchronize external processing or to detect errors in the audio data stream.
  • To implement a 24-bit audio interface, configure the CS4397-KSZ to use 24-bit data words by setting the Data Word Length (DWL) bits in the Audio Interface Control Register (AICR). Additionally, ensure that the external audio interface is configured to support 24-bit data transfer.
  • The maximum allowed clock jitter for the CS4397-KSZ is 500 ps peak-to-peak. Exceeding this limit may result in audio data corruption or errors.
