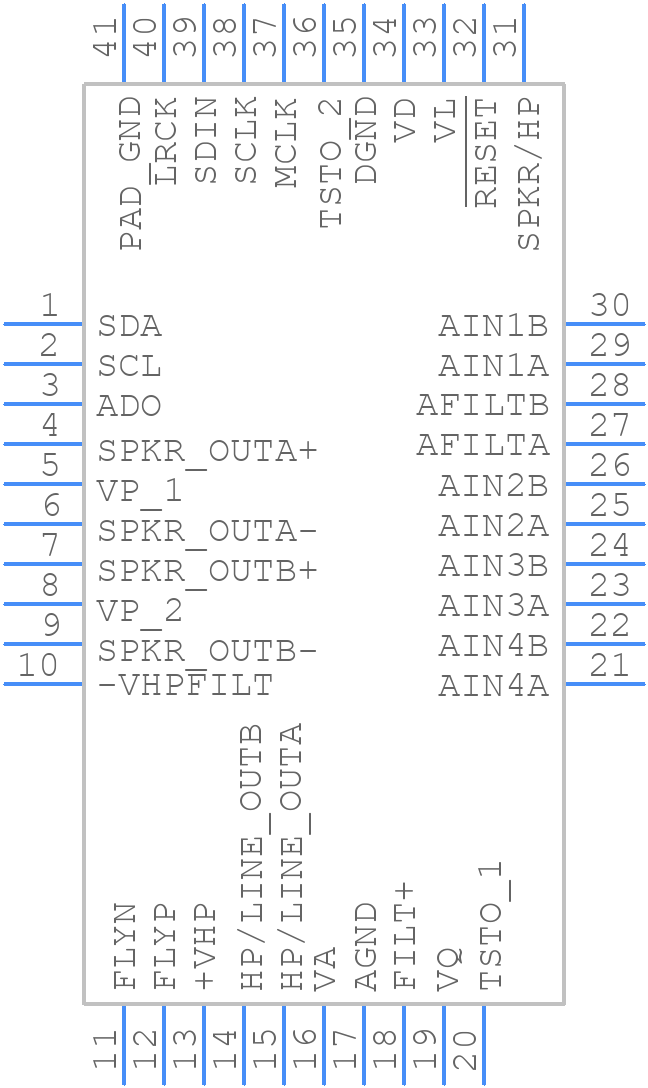

CS43L22-CNZ - Cirrus Logic

CS43L22-CNZ Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the CS43L22-CNZ?
  The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then apply the clock signal. This ensures proper device initialization and prevents potential latch-up conditions.
• How do I configure the CS43L22-CNZ for master clock mode?
  To configure the CS43L22-CNZ for master clock mode, set the MCLK pin as the clock source by setting the MCLK_SEL bit in the Clock Control Register (0x04). Then, set the desired clock frequency using the MCLK_DIV bits in the Clock Control Register.
• What is the maximum allowed capacitance on the analog output pins?
  The maximum allowed capacitance on the analog output pins is 220 pF. Exceeding this value may affect the device's stability and performance.
• How do I implement a headphone detection circuit with the CS43L22-CNZ?
  To implement a headphone detection circuit, connect a resistor (typically 1 kΩ) between the HP_DET pin and ground. When a headphone is inserted, the HP_DET pin will be pulled low, indicating the presence of a headphone.
• What is the recommended layout and routing for the CS43L22-CNZ?
  To minimize noise and ensure proper operation, keep analog and digital signals separate, use a solid ground plane, and route clock signals away from analog signals. Also, place decoupling capacitors close to the device's power pins.
