The recommended PCB layout for the CS5014-BL14Z involves placing the device near the audio connector, using a solid ground plane, and minimizing the length of the analog signal traces. A 4-layer PCB with a dedicated ground plane is recommended.
To optimize the performance of the CS5014-BL14Z in a noisy environment, use a low-pass filter on the analog input, ensure good power supply decoupling, and use a shielded cable for the audio signal. Additionally, consider using a common-mode filter or a ferrite bead on the analog input.
The maximum power consumption of the CS5014-BL14Z is approximately 120mW, assuming a 3.3V supply voltage and a 48kHz sampling rate. However, this value can vary depending on the specific application and operating conditions.
No, the CS5014-BL14Z is designed to operate with a 3.3V power supply. Using a 5V power supply may damage the device or affect its performance. If a 5V power supply is required, consider using a voltage regulator to step down the voltage to 3.3V.
To configure the CS5014-BL14Z for 24-bit audio, set the SCK pin to 256fs, the WS pin to 32fs, and the BCK pin to 64fs. Additionally, ensure that the SDIN pin is connected to the audio data signal and the SDOUT pin is connected to the audio data output.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5014-BL14Z Overview

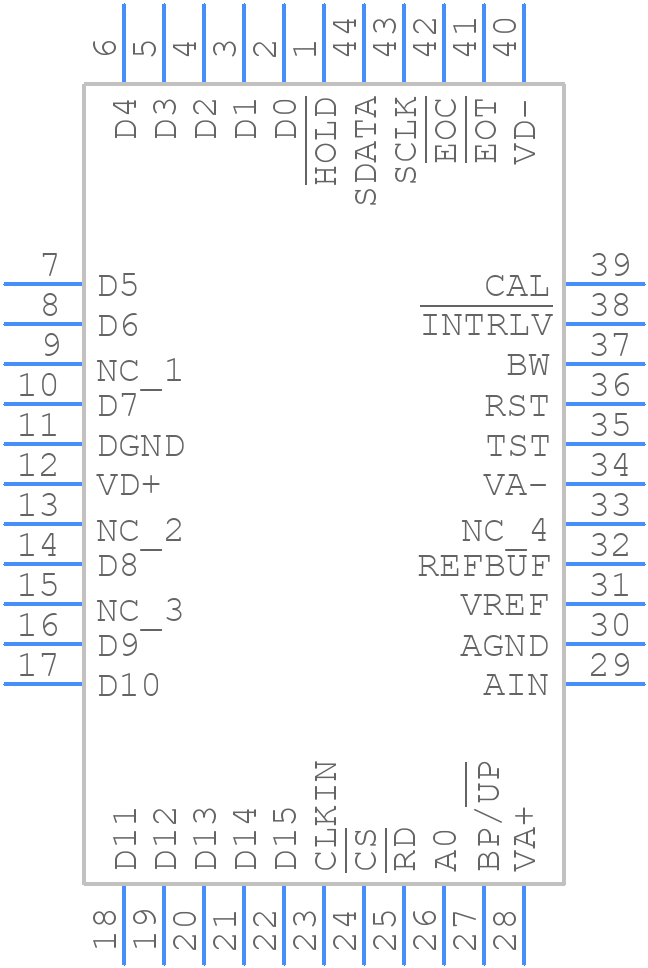

Use the download button to access the CS5014-BL14Z schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CS501,
or try a keyword search, such as Analog to Digital Converters
