The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
To optimize performance in a noisy environment, ensure that the analog and digital power supplies are well-filtered and decoupled. Additionally, use a low-pass filter on the analog input signals and consider using a shielded enclosure to reduce electromagnetic interference (EMI).
The maximum clock frequency that can be used with the CS5364-DQZ is 216 kHz. However, the recommended clock frequency is 192 kHz for optimal performance.
To configure the CS5364-DQZ for differential analog input mode, connect the positive analog input signal to the IN+ pin and the negative analog input signal to the IN- pin. Ensure that the differential input mode is selected through the device's control registers.
The recommended layout and routing for the CS5364-DQZ involves keeping the analog and digital signal paths separate, using a star-ground configuration, and minimizing the length of the analog input traces. Additionally, ensure that the power supply decoupling capacitors are placed close to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5364-DQZ Overview

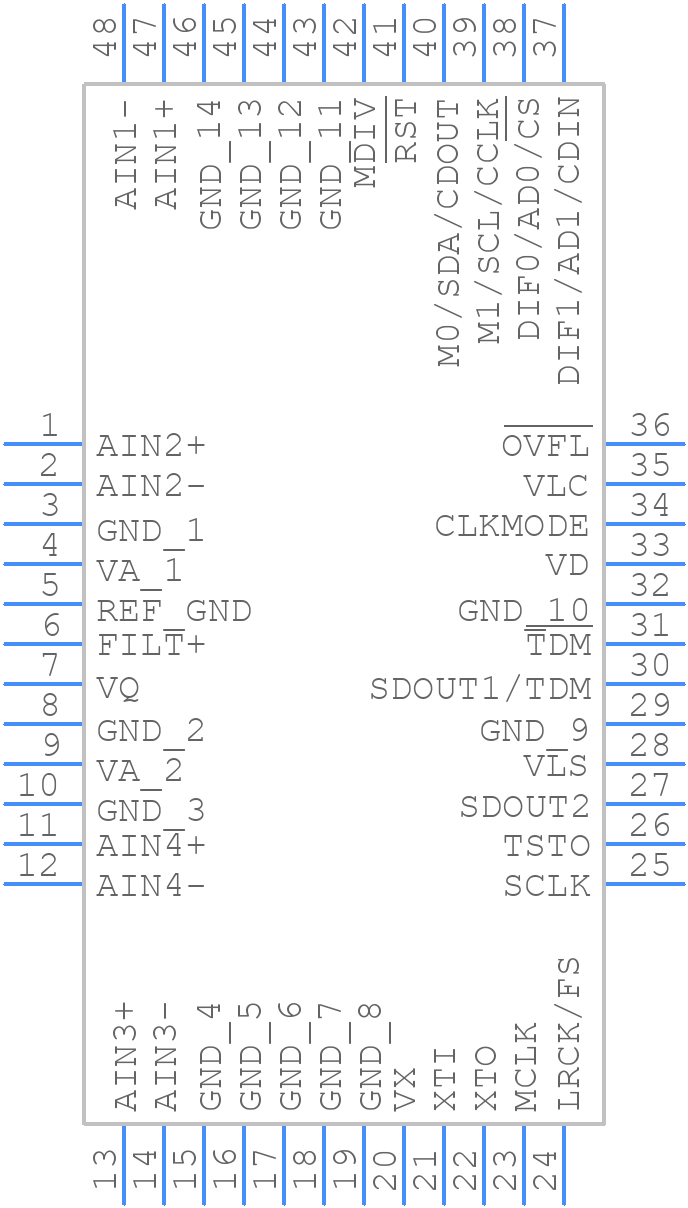

Use the download button to access the CS5364-DQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS536,
or try a keyword search, such as Analog to Digital Converters
