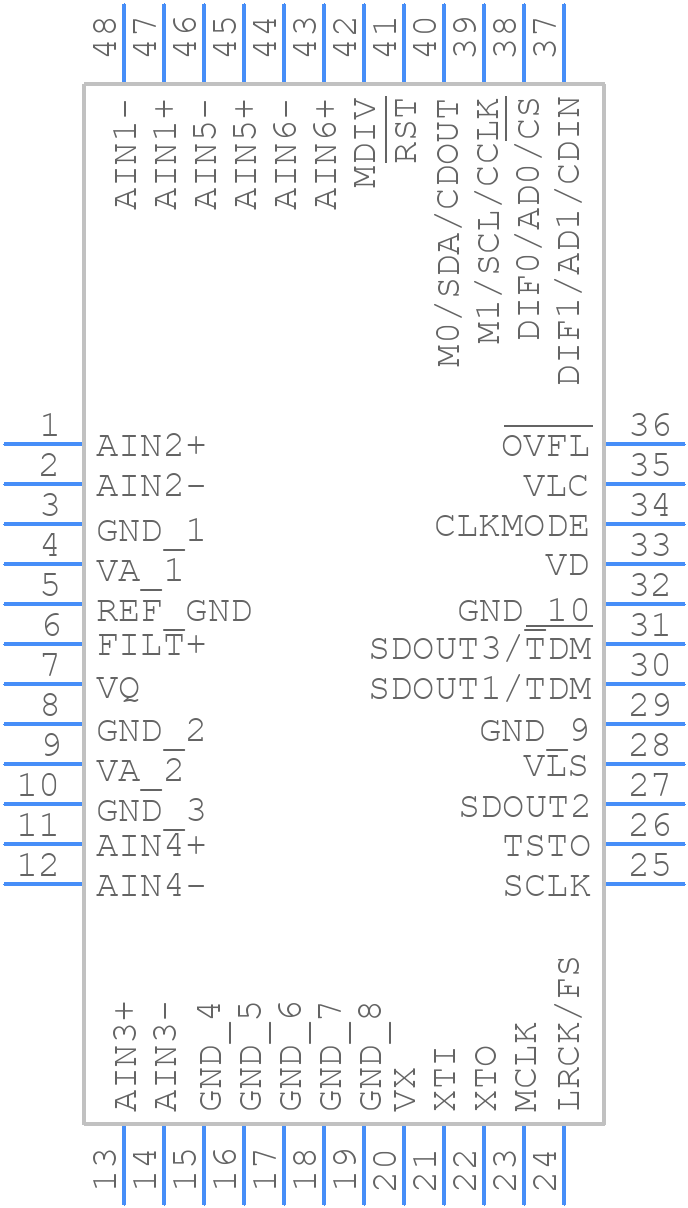

CS5366-CQZ - Cirrus Logic

CS5366-CQZ Frequently Asked Questions (FAQs)

• What is the optimal power-up sequence for the CS5366-CQZ?
  The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog power supplies (AVDD and DVDD). This ensures proper device operation and prevents latch-up.
• How do I optimize the analog-to-digital converter (ADC) performance?
  To optimize ADC performance, ensure proper PCB layout, use a low-noise power supply, and decouple the analog power pins (AVDD and AVSS) with 10uF and 100nF capacitors. Additionally, use a clock frequency between 2.4 MHz and 12 MHz for optimal performance.
• What is the recommended clock source for the CS5366-CQZ?
  The CS5366-CQZ can use an external clock source or its internal oscillator. For optimal performance, use a high-quality external clock source with a frequency between 2.4 MHz and 12 MHz. If using the internal oscillator, ensure proper decoupling and a stable power supply.
• How do I handle the digital output data from the CS5366-CQZ?
  The CS5366-CQZ outputs 24-bit data in a serial format. To handle the digital output data, use a microcontroller or FPGA to receive and process the data. Ensure proper synchronization and data formatting to avoid data corruption.
• What is the maximum operating temperature range for the CS5366-CQZ?
  The CS5366-CQZ is rated for operation between -40°C and 85°C. Ensure proper thermal management and heat dissipation to maintain reliable operation within this temperature range.
