CS5381-KZZ - Cirrus Logic

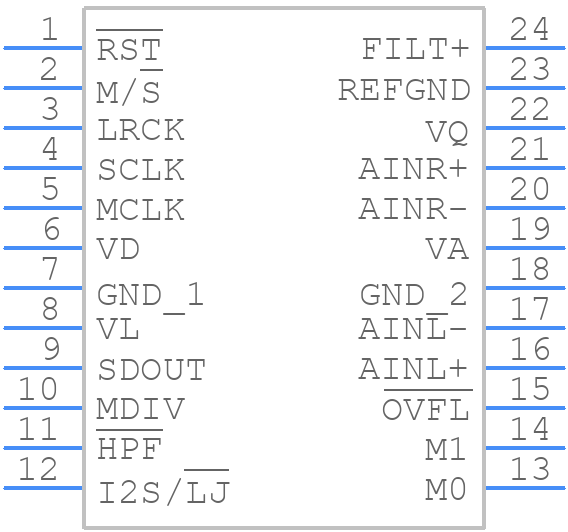

CS5381-KZZ Details

• Manufacturer Part Number:

  CS5381-KZZ

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  4.4 MM WIDTH, LEAD FREE, MO-153, TSSOP-24

• Pin Count:

  24

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Cirrus Logic

• YTEOL:

  0

• Analog Input Voltage-Max:

  5.9 V

• Analog Input Voltage-Min:

  -5.9 V

• Conversion Time-Max:

  520 µs

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  7.8 mm

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  2

• Number of Bits:

  24

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -10 °C

• Output Bit Code:

  2'S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.192 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  43 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  4.4 mm
