The recommended layout and placement for the CS5460A-BSZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize the performance of the CS5460A-BSZ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and consider using a common-mode filter on the analog input. Additionally, ensure that the device is properly grounded and that the power supply is clean and stable.
The recommended power-up sequence for the CS5460A-BSZ is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-related issues.
To troubleshoot issues with the CS5460A-BSZ, start by checking the power supply and clock signals to ensure they are stable and within the recommended specifications. Then, check the analog input signals to ensure they are within the recommended range and not clipping. Use an oscilloscope to visualize the signals and identify any issues. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
The recommended method for calibrating the CS5460A-BSZ involves using the device's built-in calibration registers to adjust the gain and offset of the analog-to-digital converter. The calibration process typically involves applying a known input signal and adjusting the calibration registers to achieve the desired accuracy and linearity.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5460A-BSZ Overview

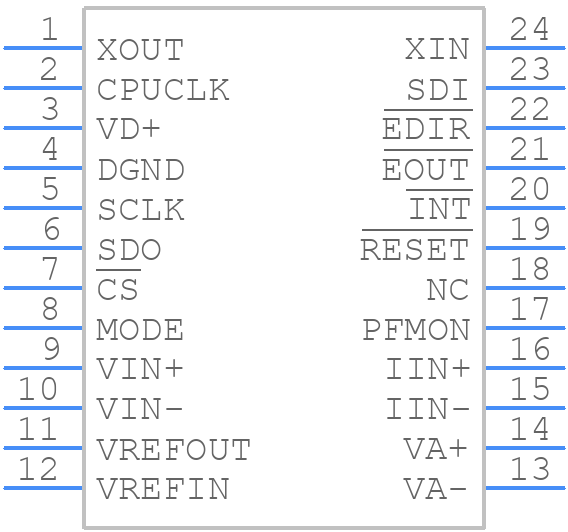

Use the download button to access the CS5460A-BSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS546,
or try a keyword search, such as Analog to Digital Converters
