The CS5463-ISZ requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
To optimize the performance of the CS5463-ISZ in noisy environments, it is recommended to use proper shielding, filtering, and grounding techniques. Additionally, using a low-pass filter on the analog input signals and ensuring a stable power supply can help to reduce noise and improve performance.
The maximum clock frequency that can be used with the CS5463-ISZ is 20 MHz. However, it is recommended to use a clock frequency of 10 MHz or less to ensure optimal performance and to minimize the effects of jitter and noise.
The CS5463-ISZ has a programmable gain amplifier that can be configured for different gain settings using the Gain Control Register. The gain can be set to 1, 2, 4, or 8, and the gain setting can be changed dynamically using the SPI interface.
The power consumption of the CS5463-ISZ depends on the operating mode and the clock frequency. In normal operation, the device consumes around 15 mA of current. In power-down mode, the current consumption is reduced to around 10 μA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5463-ISZ Overview

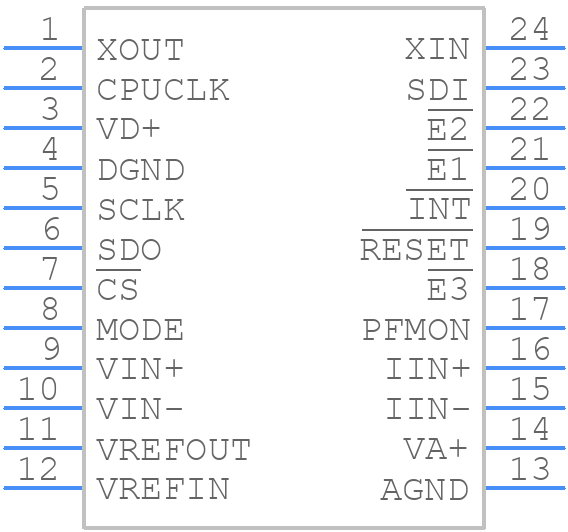

Use the download button to access the CS5463-ISZ schematic symbol, PCB footprint, and 3D model.
