The recommended layout and routing for the CS5464-ISZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also important to keep the power supply decoupling capacitors close to the device.
To optimize the performance of the CS5464-ISZ in noisy environments, use a low-pass filter on the analog input, add a shield around the device, and use a common-mode choke to reduce electromagnetic interference (EMI). Additionally, ensure that the device is properly grounded and decoupled.
The CS5464-ISZ can support clock frequencies up to 50 MHz, but the maximum frequency may vary depending on the specific application and system design.
Calibration of the CS5464-ISZ involves adjusting the internal voltage reference and gain settings to optimize the device's performance. This can be done using the device's built-in calibration registers or through external calibration circuits.
The power consumption of the CS5464-ISZ varies depending on the operating mode and clock frequency. To reduce power consumption, use the device's power-down modes, reduce the clock frequency, and optimize the system design to minimize power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5464-ISZ Overview

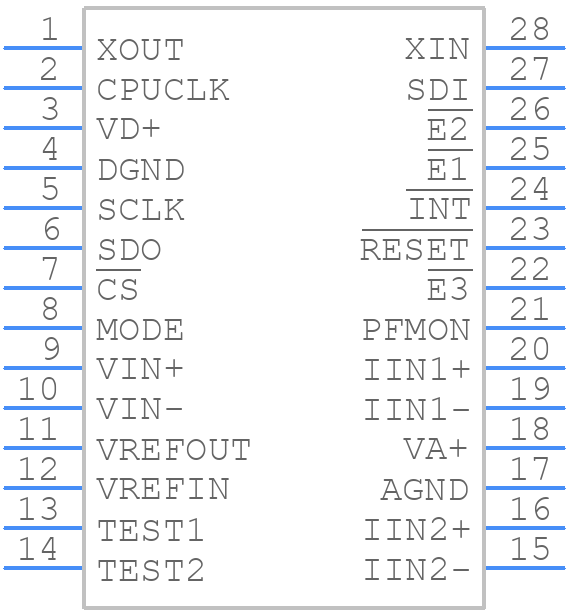

Use the download button to access the CS5464-ISZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS546,
or try a keyword search, such as Other Signal Circuits
