The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog power supplies (AVDD and DVDD). This ensures proper device operation and prevents latch-up.
To optimize performance, ensure proper PCB layout, decoupling, and grounding. Use a low-ESR capacitor for the analog power supply, and keep the analog and digital grounds separate. Additionally, use a clock signal with low jitter and a stable voltage reference.
The CS5510-ASZ supports clock frequencies up to 100 MHz. However, the actual clock frequency may be limited by the specific application and system requirements.
The gain settings can be configured through the SPI interface. The device has multiple gain settings, which can be selected by writing the appropriate values to the gain control registers. Refer to the datasheet for the specific register addresses and values.
The typical power consumption of the CS5510-ASZ varies depending on the operating mode and clock frequency. In normal operation, the device typically consumes around 150-200 mW. In power-down mode, the consumption is significantly reduced to around 10-20 μW.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5510-ASZ Overview

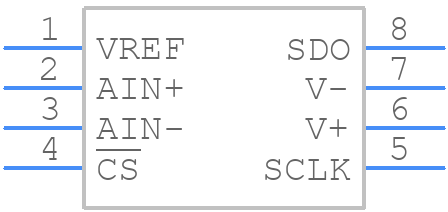

Use the download button to access the CS5510-ASZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS551,
or try a keyword search, such as Analog to Digital Converters
